Documentation for Open Travel (OTA)
Definition Type: Element
Name: SeatRequest
Type: SeatRequestType
Containing Schema: OTA_AirCommonTypes.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Seating requests for each passenger for each air leg of this trip.

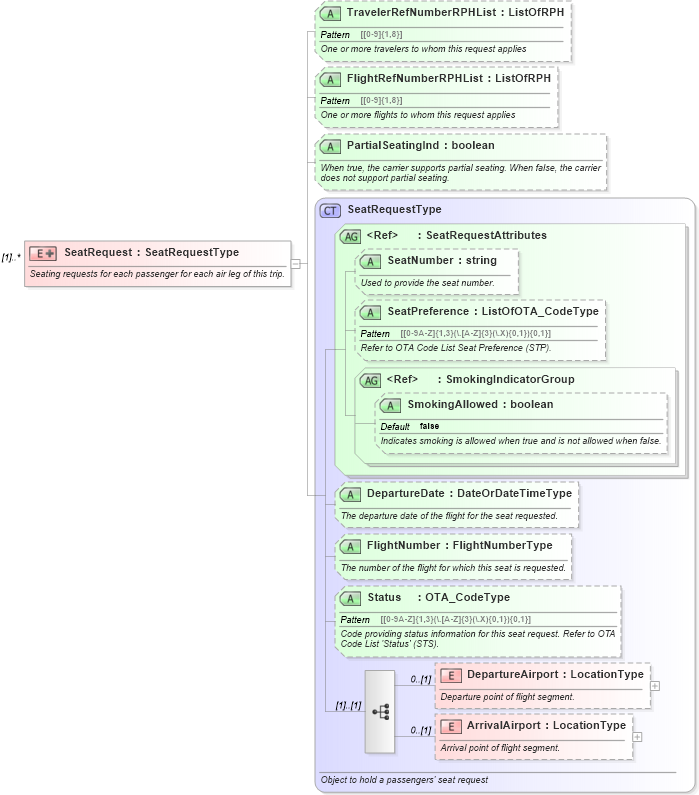

Collapse XSD Schema Diagram:
Drilldown into ArrivalAirport in schema ota_aircommontypes_xsd1 Drilldown into DepartureAirport in schema ota_aircommontypes_xsd1 Drilldown into Status in schema ota_aircommontypes_xsd Drilldown into FlightNumber in schema ota_aircommontypes_xsd Drilldown into DepartureDate in schema ota_aircommontypes_xsd Drilldown into SmokingAllowed in schema ota_commontypes_xsd1 Drilldown into SmokingIndicatorGroup in schema ota_commontypes_xsd Drilldown into SeatPreference in schema ota_commontypes_xsd1 Drilldown into SeatNumber in schema ota_commontypes_xsd1 Drilldown into SeatRequestAttributes in schema ota_commontypes_xsd Drilldown into SeatRequestType in schema ota_aircommontypes_xsd1 Drilldown into PartialSeatingInd in schema ota_aircommontypes_xsd Drilldown into FlightRefNumberRPHList in schema ota_aircommontypes_xsd Drilldown into TravelerRefNumberRPHList in schema ota_aircommontypes_xsdXSD Diagram of SeatRequest in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="SeatRequest" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation xml:lang="en">Seating requests for each passenger for each air leg of this trip.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:annotation>
            <xs:documentation xml:lang="en"> AWG to revisit.</xs:documentation>
        </xs:annotation>
        <xs:complexContent>
            <xs:extension base="SeatRequestType">
                <xs:attribute name="TravelerRefNumberRPHList" type="ListOfRPH" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">One or more travelers to whom this request applies</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="FlightRefNumberRPHList" type="ListOfRPH" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">One or more flights to whom this request applies</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="PartialSeatingInd" type="xs:boolean" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">When true, the carrier supports partial seating. When false, the carrier does not support partial seating.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureAirport DepartureAirport 0 (1)
ArrivalAirport ArrivalAirport 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
SeatNumber SeatNumber Optional
SeatPreference SeatPreference Optional
SmokingAllowed SmokingAllowed false Optional
DepartureDate DepartureDate Optional
FlightNumber FlightNumber Optional
Status Status Optional
TravelerRefNumberRPHList TravelerRefNumberRPHList Optional
FlightRefNumberRPHList FlightRefNumberRPHList Optional
PartialSeatingInd PartialSeatingInd Optional
Collapse Derivation Tree:
