Documentation for Open Travel (OTA)
Definition Type: Element
Name: Ticketing
Namespace: http://www.opentravel.org/OTA/2003/05
Type: TicketingInfoType
Containing Schema: OTA_AirBookRQ.xsd
MinOccurs 0
MaxOccurs 99
Abstract
Documentation:
Information used to specify the ticketing arrangement.

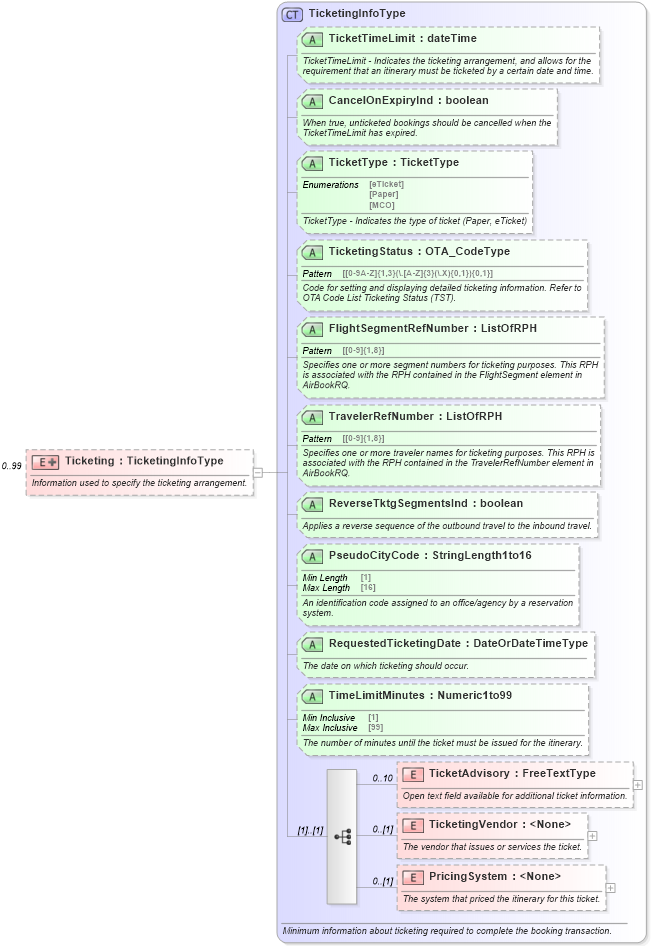

Collapse XSD Schema Diagram:
Drilldown into PricingSystem in schema ota_aircommontypes_xsd Drilldown into TicketingVendor in schema ota_aircommontypes_xsd Drilldown into TicketAdvisory in schema ota_aircommontypes_xsd Drilldown into TimeLimitMinutes in schema ota_aircommontypes_xsd Drilldown into RequestedTicketingDate in schema ota_aircommontypes_xsd Drilldown into PseudoCityCode in schema ota_aircommontypes_xsd Drilldown into ReverseTktgSegmentsInd in schema ota_aircommontypes_xsd Drilldown into TravelerRefNumber in schema ota_aircommontypes_xsd Drilldown into FlightSegmentRefNumber in schema ota_aircommontypes_xsd Drilldown into TicketingStatus in schema ota_aircommontypes_xsd Drilldown into TicketType in schema ota_aircommontypes_xsd Drilldown into CancelOnExpiryInd in schema ota_aircommontypes_xsd Drilldown into TicketTimeLimit in schema ota_aircommontypes_xsd Drilldown into TicketingInfoType in schema ota_aircommontypes_xsdXSD Diagram of Ticketing in schema ota_airbookrq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="Ticketing" minOccurs="0" maxOccurs="99">
    <xs:annotation>
        <xs:documentation xml:lang="en">Information used to specify the ticketing arrangement.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="TicketingInfoType" />
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TicketAdvisory TicketAdvisory 0 10
TicketingVendor TicketingVendor 0 (1)
PricingSystem PricingSystem 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
TicketTimeLimit TicketTimeLimit Optional
CancelOnExpiryInd CancelOnExpiryInd Optional
TicketType TicketType Optional
TicketingStatus TicketingStatus Optional
FlightSegmentRefNumber FlightSegmentRefNumber Optional
TravelerRefNumber TravelerRefNumber Optional
ReverseTktgSegmentsInd ReverseTktgSegmentsInd Optional
PseudoCityCode PseudoCityCode Optional
RequestedTicketingDate RequestedTicketingDate Optional
TimeLimitMinutes TimeLimitMinutes Optional
Collapse Derivation Tree:
