Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: TicketingInfoRS_Type
Type: TicketingInfoType
Containing Schema: OTA_AirCommonTypes.xsd
Abstract
Documentation:
Extends TicketingInfoType to provide an eTicketNumber. Minimum information about ticketing required to complete the booking transaction plus eTicket number.

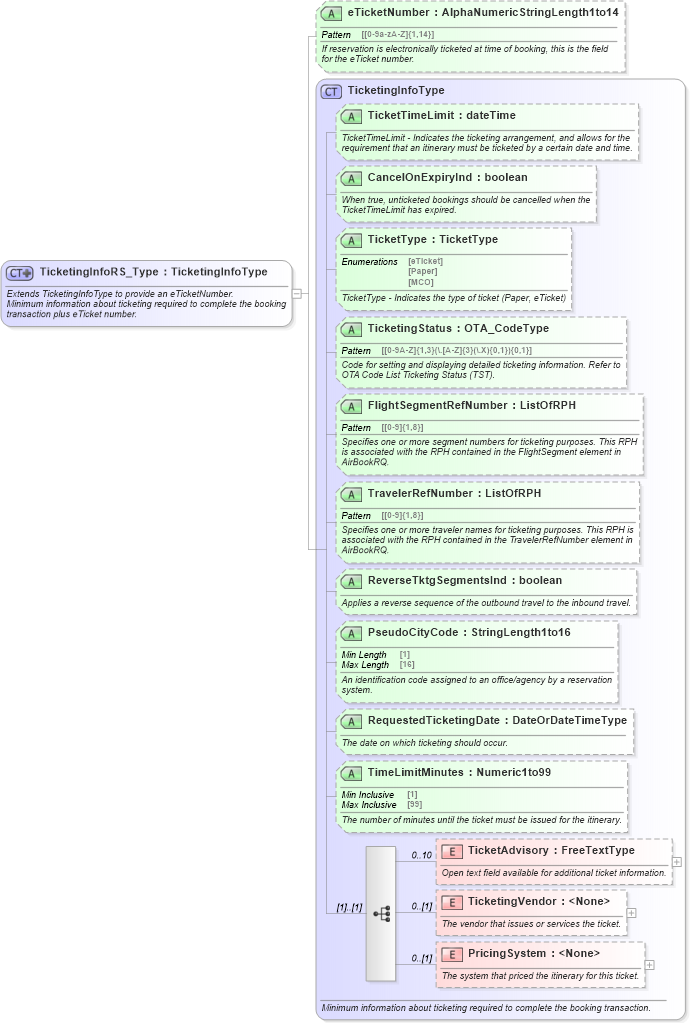

Collapse XSD Schema Diagram:
Drilldown into PricingSystem in schema ota_aircommontypes_xsd1 Drilldown into TicketingVendor in schema ota_aircommontypes_xsd1 Drilldown into TicketAdvisory in schema ota_aircommontypes_xsd1 Drilldown into TimeLimitMinutes in schema ota_aircommontypes_xsd Drilldown into RequestedTicketingDate in schema ota_aircommontypes_xsd Drilldown into PseudoCityCode in schema ota_aircommontypes_xsd Drilldown into ReverseTktgSegmentsInd in schema ota_aircommontypes_xsd Drilldown into TravelerRefNumber in schema ota_aircommontypes_xsd Drilldown into FlightSegmentRefNumber in schema ota_aircommontypes_xsd Drilldown into TicketingStatus in schema ota_aircommontypes_xsd Drilldown into TicketType in schema ota_aircommontypes_xsd Drilldown into CancelOnExpiryInd in schema ota_aircommontypes_xsd Drilldown into TicketTimeLimit in schema ota_aircommontypes_xsd Drilldown into TicketingInfoType in schema ota_aircommontypes_xsd1 Drilldown into eTicketNumber in schema ota_aircommontypes_xsdXSD Diagram of TicketingInfoRS_Type in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:complexType name="TicketingInfoRS_Type">
    <xs:annotation>
        <xs:documentation xml:lang="en">
Extends TicketingInfoType to provide an eTicketNumber.
	</xs:documentation>
        <xs:documentation xml:lang="en"> Minimum information about ticketing required to complete the booking transaction plus eTicket number.</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="TicketingInfoType">
            <xs:attribute name="eTicketNumber" type="AlphaNumericStringLength1to14" use="optional">
                <xs:annotation>
                    <xs:documentation xml:lang="en">If reservation is electronically ticketed at time of booking, this is the field for the eTicket number.</xs:documentation>
                </xs:annotation>
            </xs:attribute>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TicketAdvisory TicketAdvisory 0 10
TicketingVendor TicketingVendor 0 (1)
PricingSystem PricingSystem 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
TicketTimeLimit TicketTimeLimit Optional
CancelOnExpiryInd CancelOnExpiryInd Optional
TicketType TicketType Optional
TicketingStatus TicketingStatus Optional
FlightSegmentRefNumber FlightSegmentRefNumber Optional
TravelerRefNumber TravelerRefNumber Optional
ReverseTktgSegmentsInd ReverseTktgSegmentsInd Optional
PseudoCityCode PseudoCityCode Optional
RequestedTicketingDate RequestedTicketingDate Optional
TimeLimitMinutes TimeLimitMinutes Optional
eTicketNumber eTicketNumber Optional
Collapse Derivation Tree:
  • TicketingInfoType
    • TicketingInfoRS_Type
      • Unresolved link to ticketinginfo3
      • Unresolved link to ticketinginfo5
      • Unresolved link to ticketnumber3
      • Unresolved link to ticketing3
Collapse References:
Unresolved link to ticketing3TicketingInfo, Unresolved link to ticketinginfo3, Unresolved link to ticketinginfo5, Unresolved link to ticketnumber3,
