<xs:complexType name="TravelerInfoSummaryType">
<xs:annotation>
<xs:documentation xml:lang="en">Specify passenger numbers and types</xs:documentation>
</xs:annotation>
<xs:sequence>
<xs:element name="SeatsRequested" type="xs:nonNegativeInteger" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en"> Number of seats requested.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="AirTravelerAvail" type="TravelerInformationType" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en"> Specifies passenger numbers and types.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="PriceRequestInformation" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en"> Identifies pricing source, if negotiated fares are requested and if it is a reprice request.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="PriceRequestInformationType">
<xs:sequence>
<xs:element name="FareRestrictionPref" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Constrains the pricing to those fares with restrictions that satisfy user-imposed limitations.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="FareRestrictPrefGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify a fare restriction and the preference level for the restriction.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
<xs:element name="Tax" type="AirTaxType" minOccurs="0" maxOccurs="20">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify tax information which may be used to override the taxes in the pricing system.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="DiscountPricing" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The information needed when a passenger presents a discount/promotional coupon for a dollar/percentage of the fare or when a passenger qualifies for a percentage discount such as a senior discount.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FlightReference" minOccurs="0" maxOccurs="16">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies a flight to which the discount pricing applies.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="FlightRefNumber" type="StringLength1to64" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The flight segment to which the discount pricing should be applied.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="DiscountPricingGroup" />
</xs:complexType>
</xs:element>
<xs:element name="SegmentOverride" minOccurs="0" maxOccurs="20">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify a segment that should be overridden.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="SegmentNumber" type="Numeric1to99" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify a segment that should be overridden.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="SegmentType" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify what should be overridden.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:NMTOKEN">
<xs:enumeration value="Connection">
<xs:annotation>
<xs:documentation xml:lang="en">Ignore that this is a connection segment.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="Stopover">
<xs:annotation>
<xs:documentation xml:lang="en">Ignore that this is a stopover segment.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="TurnaroundPoint">
<xs:annotation>
<xs:documentation xml:lang="en">Ignore that this is a turnaround point segment.</xs:documentation>
</xs:annotation>
</xs:enumeration>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Account" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies an account code to be used in pricing.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="CodeOnlyFaresInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">If true, return only the fares for the specified account code.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Code" type="StringLength1to32" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The account code for which fares are requested.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="LocationRequirement" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Location requirement information for pricing.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Type" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify the location requirement type affecting the pricing.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:NMTOKEN">
<xs:enumeration value="LocalEmployee">
<xs:annotation>
<xs:documentation xml:lang="en">The customer is a local employee.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="LocalResident">
<xs:annotation>
<xs:documentation xml:lang="en">The customer is a local resident.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="LocalNationalityShipReg">
<xs:annotation>
<xs:documentation xml:lang="en">The customer is a local national or on a ship registered to the location.</xs:documentation>
</xs:annotation>
</xs:enumeration>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="State" type="StateProvCodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The state location required for some fares.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Country" type="ISO3166" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The country location required for some fares.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
|

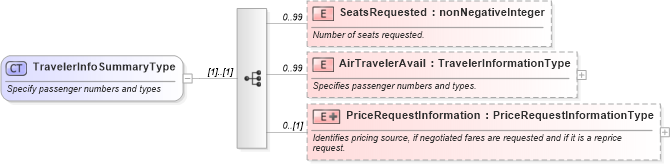

XSD Schema Diagram:
