Documentation for Open Travel (OTA)
Definition Type: Element
Name: TravelerRefNumber
Namespace: http://www.opentravel.org/OTA/2003/05
Containing Schema: OTA_AirSeatMapRS.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Direct reference of traveler assigned by requesting system. Used as a cross reference between data segments.This value will be mapped to the RPH value in TravelRefNumber of the SeatMapRequest element

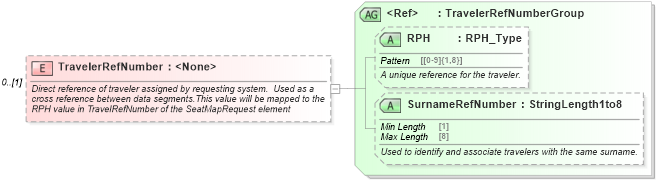

Collapse XSD Schema Diagram:
Drilldown into SurnameRefNumber in schema ota_aircommontypes_xsd Drilldown into RPH in schema ota_aircommontypes_xsd Drilldown into TravelerRefNumberGroup in schema ota_aircommontypes_xsdXSD Diagram of TravelerRefNumber in schema ota_airseatmaprs_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="TravelerRefNumber" minOccurs="0">
    <xs:annotation>
        <xs:documentation xml:lang="en">Direct reference of traveler assigned by requesting system.  Used as a cross reference between data segments.This value will be mapped to the RPH value in TravelRefNumber of the SeatMapRequest element	</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attributeGroup ref="TravelerRefNumberGroup" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
RPH RPH Optional
SurnameRefNumber SurnameRefNumber Optional
