Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: UniqueID_Type
Containing Schema: OTA_CommonTypes.xsd
Abstract
Documentation:
An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote).

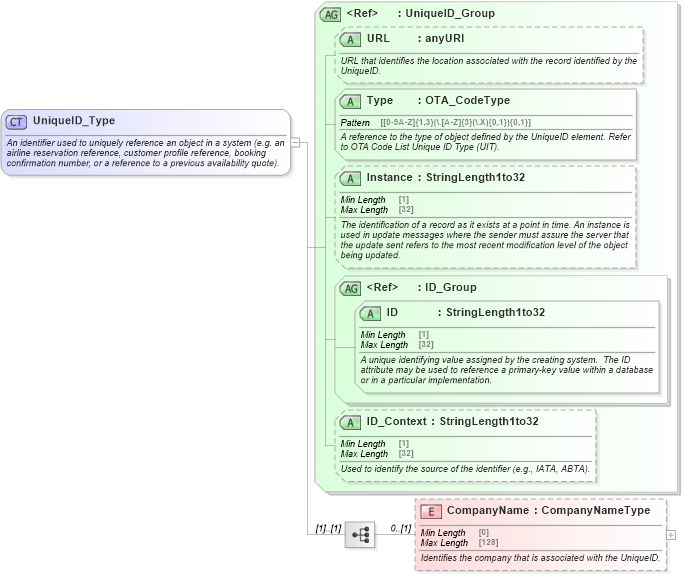

Collapse XSD Schema Diagram:
Drilldown into CompanyName in schema ota_commontypes_xsd Drilldown into ID_Context in schema ota_commontypes_xsd1 Drilldown into ID in schema ota_commontypes_xsd1 Drilldown into ID_Group in schema ota_commontypes_xsd Drilldown into Instance in schema ota_commontypes_xsd1 Drilldown into Type in schema ota_commontypes_xsd1 Drilldown into URL in schema ota_commontypes_xsd1 Drilldown into UniqueID_Group in schema ota_commontypes_xsdXSD Diagram of UniqueID_Type in schema ota_commontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:complexType name="UniqueID_Type">
    <xs:annotation>
        <xs:documentation xml:lang="en">An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote). </xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="CompanyName" type="CompanyNameType" minOccurs="0">
            <xs:annotation>
                <xs:documentation xml:lang="en">Identifies the company that is associated with the UniqueID.</xs:documentation>
            </xs:annotation>
        </xs:element>
    </xs:sequence>
    <xs:attributeGroup ref="UniqueID_Group" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompanyName CompanyName 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
URL URL (Optional)
Type Type Required
Instance Instance (Optional)
ID ID Required
ID_Context ID_Context Optional
Collapse Derivation Tree:
  • UniqueID_Type
    • Unresolved link to resid
    • Unresolved link to event_id
    • Unresolved link to uniqueid54
    • Unresolved link to uniqueid63
    • Unresolved link to rfp_id1
    • Unresolved link to messageid2
    • Unresolved link to rfp_id3
    • Unresolved link to siteid
    • Unresolved link to messageid4
    • Unresolved link to uniqueid75
    • Unresolved link to userid1
    • Unresolved link to customerid2
    • Unresolved link to trackingid1
    • Unresolved link to reference5
    • Unresolved link to confid5
    • Unresolved link to contractid4
    • Unresolved link to reference7
    • Unresolved link to uniqueid86
    • Unresolved link to confid7
    • Unresolved link to confid9
Collapse References:
Unresolved link to confid5, Unresolved link to confid7, Unresolved link to confid9 Unresolved link to contractid4, Unresolved link to customerid2, Unresolved link to event_id, Unresolved link to messageid2, Unresolved link to messageid4, Unresolved link to reference5, Unresolved link to reference7, RequestorID, ReservationID, Unresolved link to resid, Unresolved link to rfp_id1, Unresolved link to rfp_id3, Unresolved link to siteid, Unresolved link to trackingid1, UniqueID, UniqueID, UniqueID, UniqueID, Unresolved link to uniqueid54, UniqueID, Unresolved link to uniqueid63, Unresolved link to uniqueid75, UniqueID, Unresolved link to uniqueid86, UniqueID, Unresolved link to userid1,
