Documentation for Open Travel (OTA)
Definition Type: Element
Name: AirItinerary
Namespace: http://www.opentravel.org/OTA/2003/05
Type: Unresolved link to airitinerarytype1
Containing Schema: OTA_AirBookRQ.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A collection of all flight segments requested for booking.

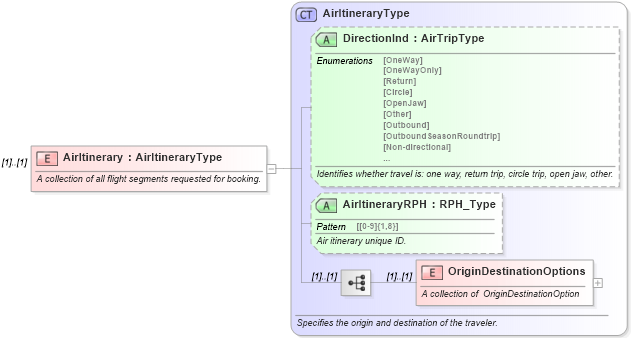

Collapse XSD Schema Diagram:
Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema XSD Diagram of AirItinerary in schema ota_airbookrq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="AirItinerary" type="AirItineraryType">
    <xs:annotation>
        <xs:documentation xml:lang="en">A collection of all flight segments requested for booking.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginDestinationOptions Unresolved link to origindestinationoptions2 (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
DirectionInd Unresolved link to directionind Optional
AirItineraryRPH Unresolved link to airitineraryrph Optional
Collapse Derivation Tree:
  • Unresolved link to airitinerarytype1
    • AirItinerary
