Documentation for Open Travel (OTA)
Definition Type: Element
Name: NegotiatedFare
Namespace: http://www.opentravel.org/OTA/2003/05
Type: Unresolved link to fareinfotype1
Containing Schema: OTA_AirBaggageRQ.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Information for negotiated fares and services.
Collapse XSD Schema Diagram:

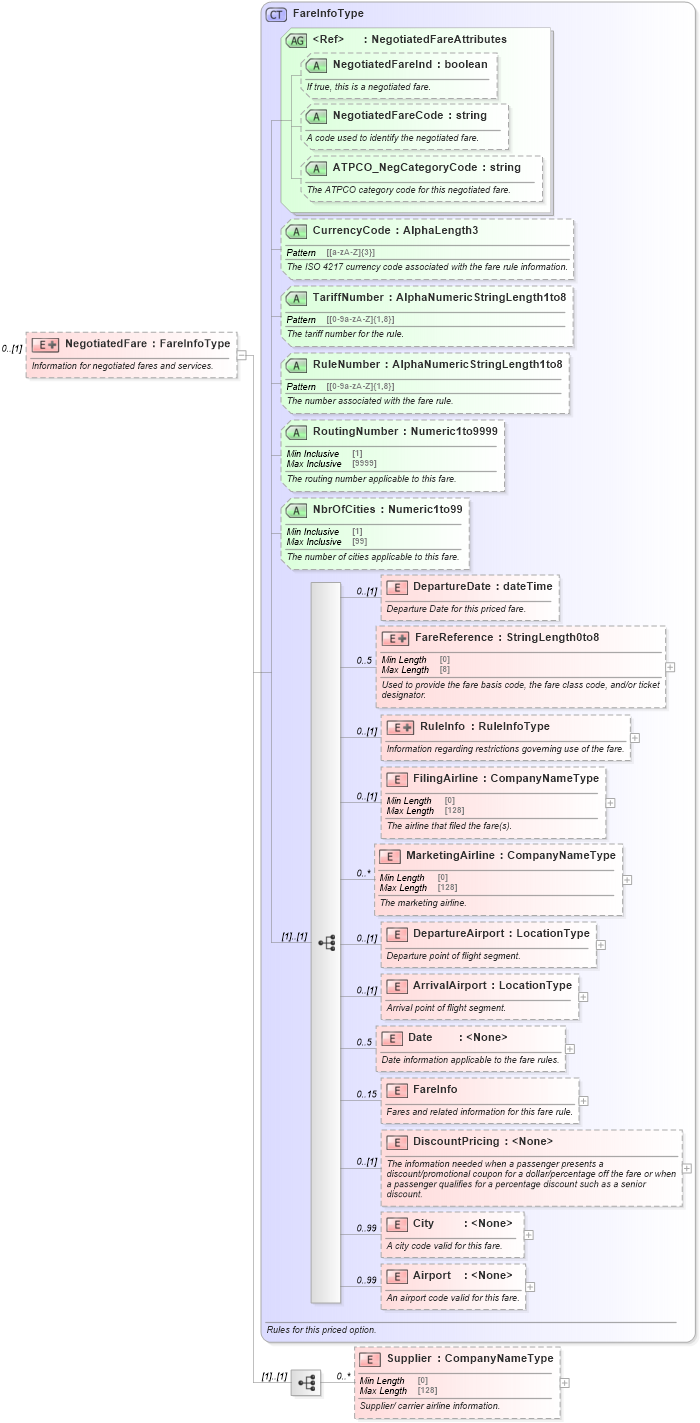

Drilldown into Supplier in schema ota_airbaggagerq_xsd Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema XSD Diagram of NegotiatedFare in schema ota_airbaggagerq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="NegotiatedFare" minOccurs="0">
    <xs:annotation>
        <xs:documentation source="Description" xml:lang="en">Information for negotiated fares and services.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="FareInfoType">
                <xs:sequence>
                    <xs:element name="Supplier" type="CompanyNameType" minOccurs="0" maxOccurs="unbounded">
                        <xs:annotation>
                            <xs:documentation source="Description" xml:lang="en">Supplier/ carrier airline information.</xs:documentation>
                        </xs:annotation>
                    </xs:element>
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureDate Unresolved link to departuredate3 0 (1)
FareReference Unresolved link to farereference1 0 5
RuleInfo Unresolved link to ruleinfo3 0 (1)
FilingAirline Unresolved link to filingairline1 0 (1)
MarketingAirline Unresolved link to marketingairline3 0 unbounded
DepartureAirport Unresolved link to departureairport 0 (1)
ArrivalAirport Unresolved link to arrivalairport 0 (1)
Date Unresolved link to date2 0 5
FareInfo Unresolved link to fareinfo7 0 15
DiscountPricing Unresolved link to discountpricing 0 (1)
City Unresolved link to city 0 99
Airport Unresolved link to airport1 0 99
Supplier nsA:Supplier 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
NegotiatedFareInd Unresolved link to negotiatedfareind Optional
NegotiatedFareCode Unresolved link to negotiatedfarecode Optional
ATPCO_NegCategoryCode Unresolved link to atpco_negcategorycode Optional
CurrencyCode Unresolved link to currencycode3 Optional
TariffNumber Unresolved link to tariffnumber2 Optional
RuleNumber Unresolved link to rulenumber2 Optional
RoutingNumber Unresolved link to routingnumber Optional
NbrOfCities Unresolved link to nbrofcities Optional
Collapse Derivation Tree:
  • Unresolved link to fareinfotype1
    • NegotiatedFare
