<xs:element name="OriginDestinationInformation" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation xml:lang="en">Information on the locations between which availability was requested.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="OriginDestinationInformationType">
<xs:sequence>
<xs:element name="OriginDestinationOptions">
<xs:annotation>
<xs:documentation xml:lang="en">A container for origin destination option information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="OriginDestinationOption" maxOccurs="999">
<xs:annotation>
<xs:documentation xml:lang="en">Holds the collection of flight options for this origin-destination pair. There maybe limits imposed by individual supplier that are below the maximum occurrences for this element.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FlightSegment" maxOccurs="8">
<xs:annotation>
<xs:documentation xml:lang="en">Details of the flight option for an origin destination pair.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:annotation>
<xs:documentation xml:lang="en">Flight segment information returned for an availability request including ancillary information. </xs:documentation>
</xs:annotation>
<xs:complexContent>
<xs:extension base="FlightSegmentType">
<xs:sequence>
<xs:element name="TrafficRestrictionInfo" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Traffic restriction information for a specific flight.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="FreeTextType">
<xs:attribute name="Code" type="OTA_CodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The traffic restriction that applies to this flight segment. Refer to OpenTravel Code list TRC (Traffic Restriction Code).</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="Comment" type="FreeTextType" minOccurs="0" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">Any special comments on the leg. eg. operated by XX. </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="MarketingCabin" type="MarketingCabinType" minOccurs="0" maxOccurs="9">
<xs:annotation>
<xs:documentation xml:lang="en">The airline specific branding for cabins.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="BookingClassAvail" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Booking codes available to be sold for a particular flight segment.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Meal" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">The meal service for this booking class.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="MealService" type="MealServiceType" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">Used to designate a meal or beverage service.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="BookingClassAvailabilityGroup" />
<xs:attribute name="RPH" type="RPH_Type" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">RPH refers back to Marketing Cabin Type.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="StopLocation" minOccurs="0" maxOccurs="9">
<xs:annotation>
<xs:documentation xml:lang="en">A location where the flight is scheduled to stop en route to its destination for this flight segment.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="LocationGroup">
<xs:annotation>
<xs:documentation xml:lang="en">A location where the flight is scheduled to stop en route to its destination for this flight segment.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="JourneyDuration" type="xs:duration" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The duration of the flight from departure location to destination location.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attributeGroup ref="SmokingIndicatorGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies if the flight is smoking or not.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
<xs:attribute name="OnTimeRate" type="Percentage" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the Dept. of Transport on time rate of the flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Ticket" type="TicketType">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies if the flight is e-ticketable or not.</xs:documentation>
<xs:documentation xml:lang="en">
<LegacyDefaultValue>Paper</LegacyDefaultValue>
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ParticipationLevelCode" type="OTA_CodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">To specify the level of participation by a vendor in another system. Refer to OpenTravel Code List 'Participation Level Code' (PLC).</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="GroundDuration" type="xs:duration" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The duration of a ground stop.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="AccumulatedDuration" type="xs:duration" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The total duration time of the flight. This is the combination of both JourneyDuration and GroundDuration.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Distance" type="xs:nonNegativeInteger" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Miles acquired per flight segment, usually used for earning of frequent flyer miles.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="CodeshareInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, this flight is a codeshare flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="FlifoInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, FLIFO information exists for this flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DateChangeNbr" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When present, contains the number of days by which the flight's arrival date differs from its departure date (e.g., +1, -1).</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="SequenceNumber" type="Numeric1to999" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The sequence number of this flight segment with respect to all flight segments returned in the response.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="OptionalServicesInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, optional services are available for this flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="SameAirportInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">If true, the return departure must be from the same airport as the outbound arrival.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="RPH" type="RPH_Type" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Uniquely identifies this origin destination information.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
|

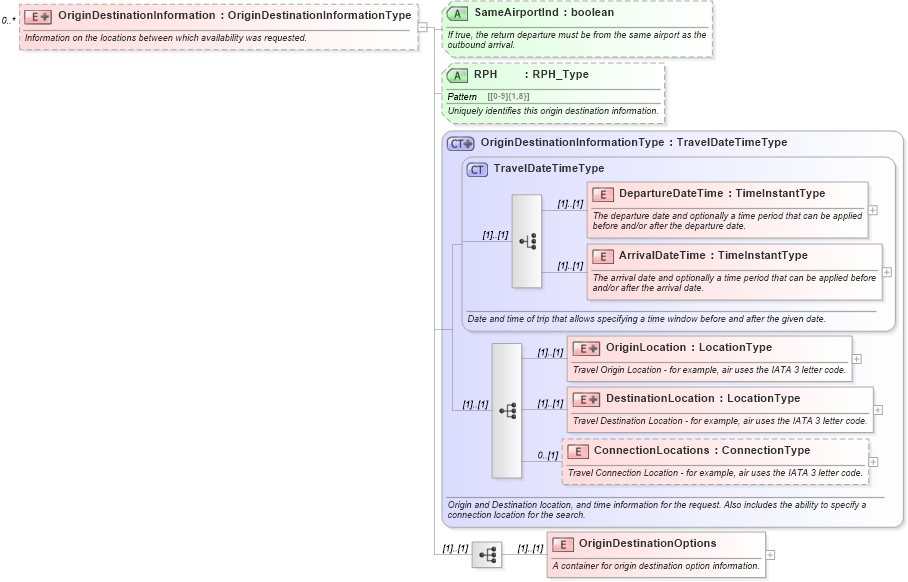

XSD Schema Diagram:
