Documentation for Open Travel (OTA)
Definition Type: Element
Name: AssociatedProductAncillary
Namespace: http://www.opentravel.org/OTM/product/v4
Type: prod-0400:Product_Ancillary
Containing Schema: Product_4_0_0.xsd
Abstract

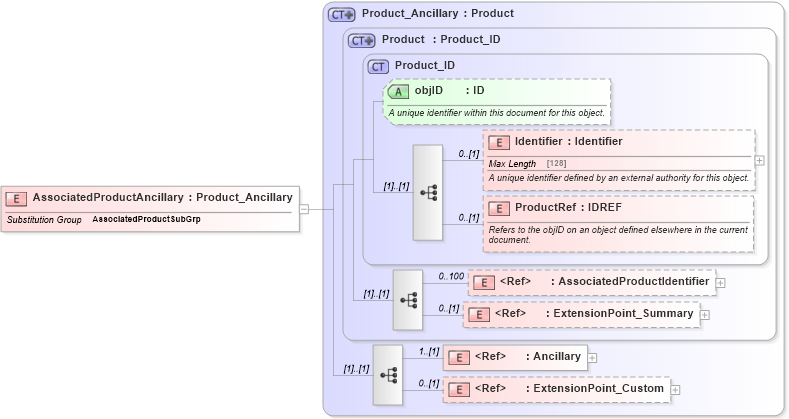

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Custom in schema otm_builtins_xsd Drilldown into Ancillary in schema common_4_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into AssociatedProductIdentifier in schema product_4_0_0_xsd Drilldown into ProductRef in schema product_4_0_0_xsd Drilldown into Identifier in schema product_4_0_0_xsd Drilldown into objID in schema product_4_0_0_xsd Drilldown into Product_ID in schema product_4_0_0_xsd Drilldown into Product in schema product_4_0_0_xsd Drilldown into Product_Ancillary in schema product_4_0_0_xsdXSD Diagram of AssociatedProductAncillary in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="AssociatedProductAncillary" substitutionGroup="prod-0400:AssociatedProductSubGrp" type="prod-0400:Product_Ancillary" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier prod-0400:Identifier 0 (1)
ProductRef prod-0400:ProductRef 0 (1)
AssociatedProductIdentifier prod-0400:AssociatedProductIdentifier 0 100
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Ancillary ota2-0400:Ancillary 1 (1)
ExtensionPoint_Custom ota2:ExtensionPoint_Custom 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID prod-0400:objID Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:AssociatedProductSubGrp
