Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: BankAccountType
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: ota2:Empty
Containing Schema: Finance_3_0_0.xsd
Abstract
Collapse XSD Schema Diagram:

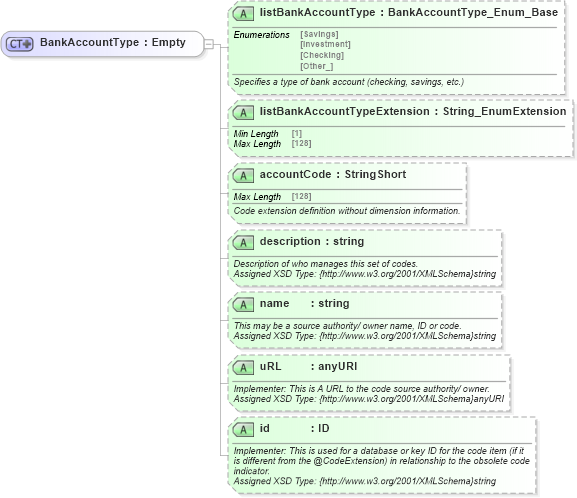

Drilldown into id in schema finance_3_0_0_xsd Drilldown into uRL in schema finance_3_0_0_xsd Drilldown into name in schema finance_3_0_0_xsd Drilldown into description in schema finance_3_0_0_xsd Drilldown into accountCode in schema finance_3_0_0_xsd Drilldown into listBankAccountTypeExtension in schema finance_3_0_0_xsd Drilldown into listBankAccountType in schema finance_3_0_0_xsdXSD Diagram of BankAccountType in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="BankAccountType">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ValueWithAttributes" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">BankAccountType</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ota2:Empty">
            <xsd:attribute name="listBankAccountType" type="ota2-0300:BankAccountType_Enum_Base" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies a type of bank account (checking, savings, etc.)</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listBankAccountTypeExtension" type="ota2:String_EnumExtension" />
            <xsd:attribute name="accountCode" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Code extension definition without dimension information.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="description" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Description of who manages this set of codes.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}string</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Description</otm:Equivalent>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Visa</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="name" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">This may be a source authority/ owner name, ID or code.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}string</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">SourceName</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="uRL" type="xsd:anyURI" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Implementer: This is A URL to the code source authority/ owner.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}anyURI</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">SourceURL</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="id" type="xsd:ID" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Implementer: This is used for a database or key ID for the code item (if it is different from the @CodeExtension) in relationship to the obsolete code indicator.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}string</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">UniqueID</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listBankAccountType fin-0300:listBankAccountType Optional
listBankAccountTypeExtension fin-0300:listBankAccountTypeExtension (Optional)
accountCode fin-0300:accountCode Optional
description fin-0300:description Optional
name fin-0300:name Optional
uRL fin-0300:uRL Optional
id fin-0300:id Optional
Collapse Derivation Tree:
Collapse References:
fin-0300:Type
