Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: BaseResponse
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract

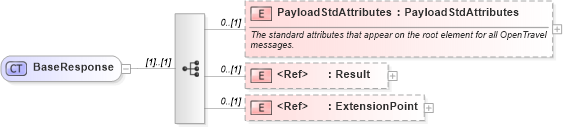

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into Result in schema common_4_0_0_xsd Drilldown into PayloadStdAttributes in schema common_4_0_0_xsdXSD Diagram of BaseResponse in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="BaseResponse">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">BaseResponse</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="PayloadStdAttributes" type="ota2-0400:PayloadStdAttributes">
            <xsd:annotation>
                <xsd:documentation source="Description">The standard attributes that appear on the root element for all OpenTravel messages.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2-0400:Result">
            <xsd:annotation>
                <xsd:documentation source="Description">When present indicates that errors or warnings occurred during processing.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PayloadStdAttributes ota2-0400:PayloadStdAttributes 0 (1)
Result ota2-0400:Result 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Derivation Tree:
Collapse References:
ota2-0400:BaseResponse
