Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: BasicPropertyInfo_Detail
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: ph:BasicPropertyInfo
Containing Schema: Hospitality_1_0_0.xsd
Abstract
Documentation:
Identifies a property.

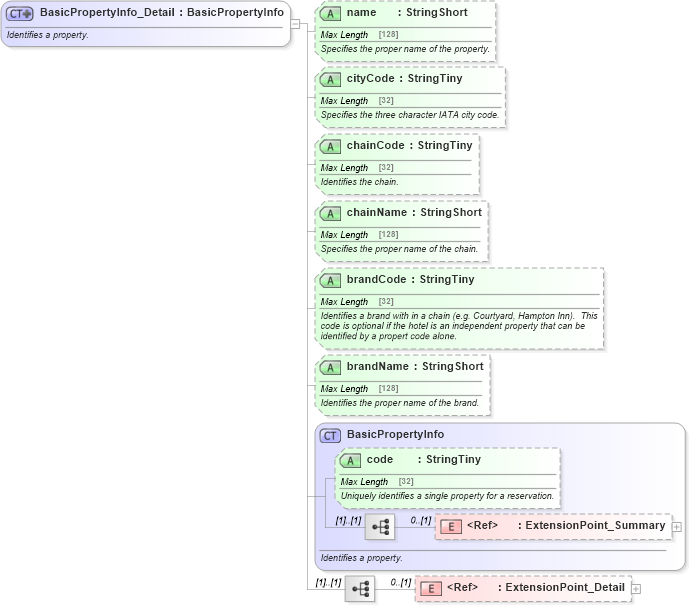

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into code in schema hospitality_1_0_0_xsd Drilldown into BasicPropertyInfo in schema hospitality_1_0_0_xsd Drilldown into brandName in schema hospitality_1_0_0_xsd Drilldown into brandCode in schema hospitality_1_0_0_xsd Drilldown into chainName in schema hospitality_1_0_0_xsd Drilldown into chainCode in schema hospitality_1_0_0_xsd Drilldown into cityCode in schema hospitality_1_0_0_xsd Drilldown into name in schema hospitality_1_0_0_xsdXSD Diagram of BasicPropertyInfo_Detail in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="BasicPropertyInfo_Detail">
    <xsd:annotation>
        <xsd:documentation source="Description">Identifies a property.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">BasicPropertyInfo</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ph:BasicPropertyInfo">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
            <xsd:attribute name="name" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the proper name of the property.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">JW Marriott Washington DC</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="cityCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the three character IATA city code.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">WAS</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="chainCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the chain.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">MC</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="chainName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Specifies the proper name of the chain.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Marriott</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="brandCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies a brand with in a chain (e.g. Courtyard, Hampton Inn).  This code is optional if the hotel is an independent property that can be identified by a propert code alone.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">FS</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="brandName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the proper name of the brand.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Full Service</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
code ph:code Optional
name ph:name Optional
cityCode ph:cityCode Optional
chainCode ph:chainCode Optional
chainName ph:chainName Optional
brandCode ph:brandCode Optional
brandName ph:brandName Optional
Collapse Derivation Tree:
Collapse References:
ph:BasicPropertyInfoDetail, ph:SiteDetail
