Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: CommissionableAmount
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Containing Schema: Hospitality_1_0_0.xsd
Abstract

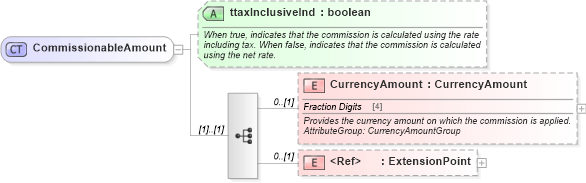

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into CurrencyAmount in schema hospitality_1_0_0_xsd Drilldown into ttaxInclusiveInd in schema hospitality_1_0_0_xsdXSD Diagram of CommissionableAmount in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="CommissionableAmount">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CommissionableAmount</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="CurrencyAmount" type="ota2-0400:CurrencyAmount">
            <xsd:annotation>
                <xsd:documentation source="Description">Provides the currency amount on which the commission is applied.</xsd:documentation>
                <xsd:documentation source="Implementer">AttributeGroup: CurrencyAmountGroup</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
    <xsd:attribute name="ttaxInclusiveInd" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">When true, indicates that the commission is calculated using the rate including tax. When false, indicates that the commission is calculated using the net rate.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CurrencyAmount ph:CurrencyAmount 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ttaxInclusiveInd ph:ttaxInclusiveInd Optional
Collapse Derivation Tree:
Collapse References:
ph:CommissionableAmount
