Definition Type: ComplexType
Name: CompanyName
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:String
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
Identifies a company by name. Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength0to128

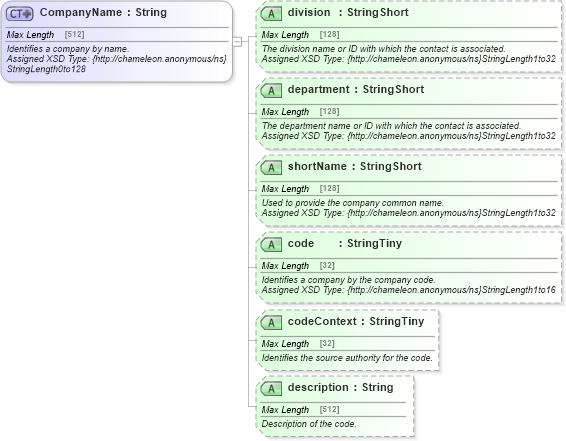

Collapse XSD Schema Diagram:
Drilldown into description in schema common_4_0_0_xsd Drilldown into codeContext in schema common_4_0_0_xsd Drilldown into code in schema common_4_0_0_xsd Drilldown into shortName in schema common_4_0_0_xsd Drilldown into department in schema common_4_0_0_xsd Drilldown into division in schema common_4_0_0_xsdXSD Diagram of CompanyName in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="CompanyName">
    <xsd:annotation>
        <xsd:documentation source="Description">Identifies a company by name.</xsd:documentation>
        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength0to128</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ValueWithAttributes" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CompanyName</otm:OTA2Entity>
            <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CompanyNameType</otm:Equivalent>
            <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Travel Adventure Partners Incorporated</otm:Example>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ota2-0400:String">
            <xsd:attribute name="division" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The division name or ID with which the contact is associated.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Division</otm:Equivalent>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Travel Division</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="department" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The department name or ID with which the contact is associated.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Department</otm:Equivalent>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Adventure department</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="shortName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Used to provide the company common name.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CompanyShortName</otm:Equivalent>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Adventure Inc</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="code" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies a company by the company code.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to16</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Code</otm:Equivalent>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">AI</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="codeContext" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the source authority for the code.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="description" type="ota2-0400:String" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Description of the code.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
division ota2-0400:division Optional
department ota2-0400:department Optional
shortName ota2-0400:shortName Optional
code ota2-0400:code Optional
codeContext ota2-0400:codeContext Optional
description ota2-0400:description Optional
Collapse Derivation Tree:
Collapse References:
fin-0300:BillingAccountName, ota2-0400:CompanyName, pgt-0200:CompanyName, ota2-0400:Name, ota2-0400:Name, prod-0400:Operator
