Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: DateTimeSpanWindows_Detail
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:DateTimeSpanWindows
Containing Schema: Common_4_0_0.xsd
Abstract

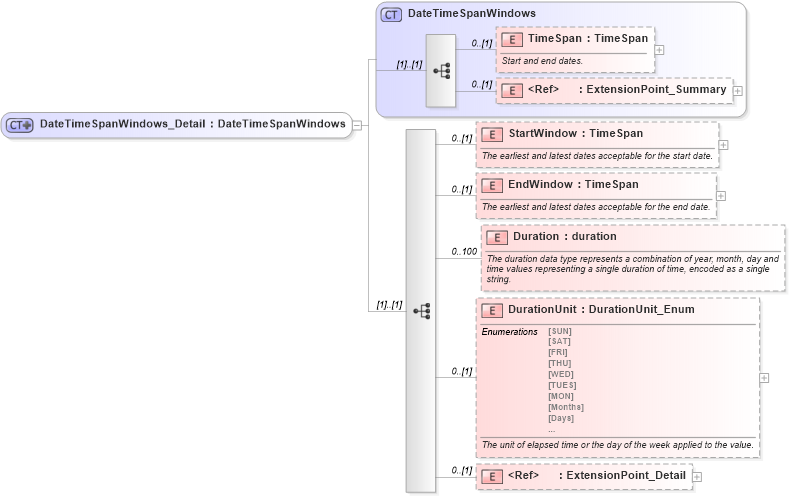

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into DurationUnit in schema common_4_0_0_xsd Drilldown into Duration in schema common_4_0_0_xsd Drilldown into EndWindow in schema common_4_0_0_xsd Drilldown into StartWindow in schema common_4_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into TimeSpan in schema common_4_0_0_xsd Drilldown into DateTimeSpanWindows in schema common_4_0_0_xsdXSD Diagram of DateTimeSpanWindows_Detail in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="DateTimeSpanWindows_Detail">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">DateTimeSpanWindows</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ota2-0400:DateTimeSpanWindows">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="StartWindow" type="ota2-0400:TimeSpan">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The earliest and latest dates acceptable for the start date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="EndWindow" type="ota2-0400:TimeSpan">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The earliest and latest dates acceptable for the end date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="100" minOccurs="0" name="Duration" type="xsd:duration">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The duration data type represents a combination of year, month, day and time values representing a single duration of time, encoded as a single string.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="DurationUnit" type="ota2-0300:DurationUnit_Enum">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The unit of elapsed time or the day of the week applied to the value.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TimeSpan ota2-0400:TimeSpan 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
StartWindow ota2-0400:StartWindow 0 (1)
EndWindow ota2-0400:EndWindow 0 (1)
Duration ota2-0400:Duration 0 100
DurationUnit ota2-0400:DurationUnit 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Derivation Tree:
Collapse References:
ota2-0400:DateTimeSpanWindowsDetail, ota2-0400:StayRestrictionsDetail
