Documentation for Open Travel (OTA)
Definition Type: Element
Name: DepartureSubGrp
Namespace: http://www.opentravel.org/OTM/product/v4
Type: prod-0400:DepartureArrival
Containing Schema: Product_4_0_0.xsd
Abstract True
Documentation:
Describes a pickup, dropoff or intermediate stop point.

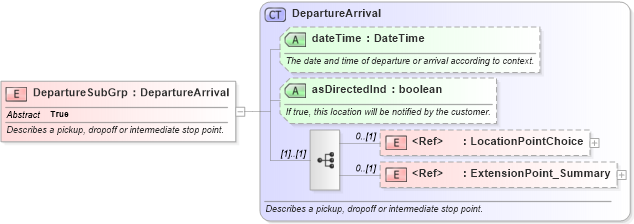

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into LocationPointChoice in schema product_4_0_0_xsd Drilldown into asDirectedInd in schema product_4_0_0_xsd Drilldown into dateTime in schema product_4_0_0_xsd Drilldown into DepartureArrival in schema product_4_0_0_xsdXSD Diagram of DepartureSubGrp in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element abstract="true" name="DepartureSubGrp" type="prod-0400:DepartureArrival">
    <xsd:annotation>
        <xsd:documentation source="Description">Describes a pickup, dropoff or intermediate stop point.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">DepartureArrival</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LocationPointChoice prod-0400:LocationPointChoice 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
dateTime prod-0400:dateTime Optional
asDirectedInd prod-0400:asDirectedInd Optional
Collapse Derivation Tree:
