Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Features
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract True
Collapse XSD Schema Diagram:

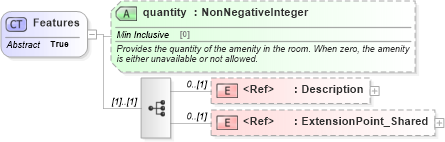

Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into quantity in schema common_4_0_0_xsdXSD Diagram of Features in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType abstract="true" name="Features">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ChoiceObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Features</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" ref="ota2-0400:Description">
            <xsd:annotation>
                <xsd:documentation source="Description">A description of the feature.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Shared" />
    </xsd:sequence>
    <xsd:attribute name="quantity" type="ota2-0400:NonNegativeInteger" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Provides the quantity of the amenity in the room. When zero, the amenity is either unavailable or not allowed.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description ota2-0400:Description 0 (1)
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
quantity ota2-0400:quantity Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:Features, orghs-0300:Features_Accessibility, ota2-0400:Features_Other, orghs-0300:Features_Security
