Documentation for Open Travel (OTA)
Definition Type: Element
Name: FormOfPaymentSubGrp
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: fin-0300:FormOfPayment_ID
Containing Schema: Finance_3_0_0.xsd
Abstract True
Documentation:
Specifies the form of payment.

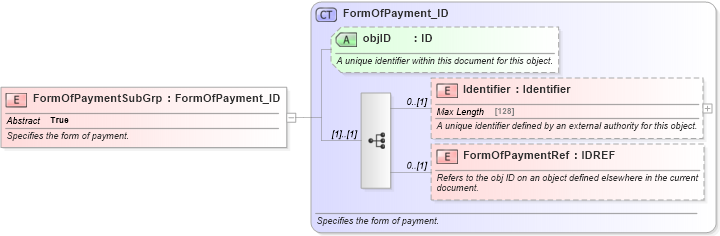

Collapse XSD Schema Diagram:
Drilldown into FormOfPaymentRef in schema finance_3_0_0_xsd Drilldown into Identifier in schema finance_3_0_0_xsd Drilldown into objID in schema finance_3_0_0_xsd Drilldown into FormOfPayment_ID in schema finance_3_0_0_xsdXSD Diagram of FormOfPaymentSubGrp in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element abstract="true" name="FormOfPaymentSubGrp" type="fin-0300:FormOfPayment_ID">
    <xsd:annotation>
        <xsd:documentation source="Description">Specifies the form of payment.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">FormOfPayment</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier fin-0300:Identifier 0 (1)
FormOfPaymentRef fin-0300:FormOfPaymentRef 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID fin-0300:objID Optional
Collapse Derivation Tree:
