Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Identifier
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:GUID
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
Identifier provides the ability to create a globally unique identifier. This could be GUID a UUID or any other string that an organization that distinctly identifies the specific object. Ideally, for the identifier to be globally unique it must have a system provided identifier and the system must be identified using a global naming authority. System identification uses the domain naming system (DNS) to assure they are globally unique and should be an URL. The system provided ID will typically be a primary or surrogate key in a database. The URL, system and company attributes can be omitted only when the system context can be implied by a parent or ancestor element.

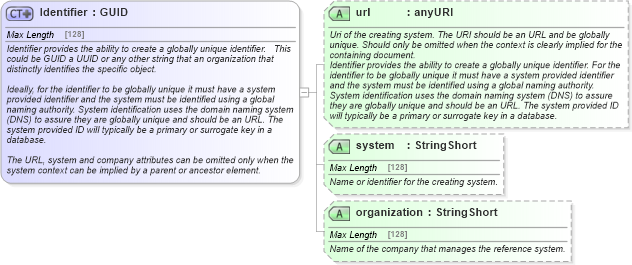

Collapse XSD Schema Diagram:
Drilldown into organization in schema common_4_0_0_xsd Drilldown into system in schema common_4_0_0_xsd Drilldown into url in schema common_4_0_0_xsdXSD Diagram of Identifier in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Identifier">
    <xsd:annotation>
        <xsd:documentation source="Description">Identifier provides the ability to create a globally unique identifier.   This could be GUID a UUID or any other string that an organization that distinctly identifies the specific object.

Ideally, for the identifier to be globally unique it must have a system provided identifier and the system must be identified using a global naming authority. System identification uses the domain naming system (DNS) to assure they are globally unique and should be an URL. The system provided ID will typically be a primary or surrogate key in a database.

The URL, system and company attributes can be omitted only when the system context can be implied by a parent or ancestor element.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ValueWithAttributes" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Identifier</otm:OTA2Entity>
            <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">guid12345</otm:Example>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ota2-0400:GUID">
            <xsd:attribute name="url" type="xsd:anyURI" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Uri of the creating system. The URI should be an URL and be globally unique. Should only be omitted when the context is clearly implied for the containing document.</xsd:documentation>
                    <xsd:documentation source="Implementer">Identifier provides the ability to create a globally unique identifier. For the identifier to be globally unique it must have a system provided identifier and the system must be identified using a global naming authority. System identification uses the domain naming system (DNS) to assure they are globally unique and should be an URL. The system provided ID will typically be a primary or surrogate key in a database.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="system" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Name or identifier for the creating system.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">sysABC3344</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="organization" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Name of the company that manages the reference system.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Acme</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
url ota2-0400:url Optional
system ota2-0400:system Optional
organization ota2-0400:organization Optional
Collapse Derivation Tree:
Collapse References:
ph:BillToID, res-0200:CancellationID, fin-0300:CardHolderId, order-0300:ConfirmationId, order-0300:ConfirmationId, ota2-0400:Identifier, pgt-0200:Identifier, pgt-0200:Identifier, pgt-0200:Identifier, ph:Identifier, ph:Identifier, ph:Identifier, order-0300:Identifier, order-0300:Identifier, order-0300:Identifier, ota2-0400:Identifier, order-0300:Identifier, org-0300:Identifier, org-0300:Identifier, prod-0400:Identifier, prod-0400:Identifier, prod-0400:Identifier, prod-0400:Identifier, res-0200:Identifier, res-0200:Identifierota2-0400:Identifier, ota2-0400:Identifier, ota2-0400:Identifier, ota2-0400:Identifier, ota2-0400:Identifier, ota2-0400:Identifier, fin-0300:Identifier, ota2-0400:OtherID, ota2-0400:OtherID,
