Definition Type: ComplexType
Name: Journey_Query_Product
Namespace: http://www.opentravel.org/OTM/product/v4
Containing Schema: Product_4_0_0.xsd
Abstract

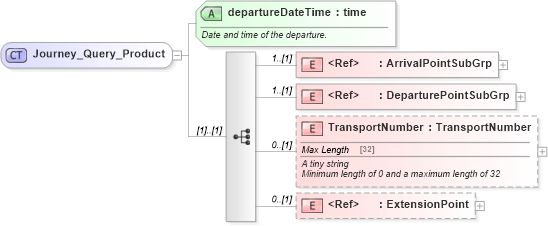

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into TransportNumber in schema product_4_0_0_xsd Drilldown into DeparturePointSubGrp in schema product_4_0_0_xsd Drilldown into ArrivalPointSubGrp in schema product_4_0_0_xsd Drilldown into departureDateTime in schema product_4_0_0_xsdXSD Diagram of Journey_Query_Product in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Journey_Query_Product">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Journey</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="1" ref="prod-0400:ArrivalPointSubGrp">
            <xsd:annotation>
                <xsd:documentation source="Description">An identifier for the departure point.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="1" ref="prod-0400:DeparturePointSubGrp">
            <xsd:annotation>
                <xsd:documentation source="Description">An identifier for the arrival point.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="TransportNumber" type="prod-0400:TransportNumber">
            <xsd:annotation>
                <xsd:documentation source="Description">A tiny string
Minimum length of 0 and a maximum length of 32</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
    <xsd:attribute name="departureDateTime" type="xsd:time" use="required">
        <xsd:annotation>
            <xsd:documentation source="Description">Date and time of the departure.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ArrivalPointSubGrp prod-0400:ArrivalPointSubGrp 1 (1)
DeparturePointSubGrp prod-0400:DeparturePointSubGrp 1 (1)
TransportNumber prod-0400:TransportNumber 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
departureDateTime prod-0400:departureDateTime Required
Collapse Derivation Tree:
Collapse References:
prod-0400:JourneyQueryProduct
