Documentation for Open Travel (OTA)
Definition Type: Element
Name: JourneySummary
Namespace: http://www.opentravel.org/OTM/product/v4
Type: prod-0400:Journey
Containing Schema: Product_4_0_0.xsd
Abstract

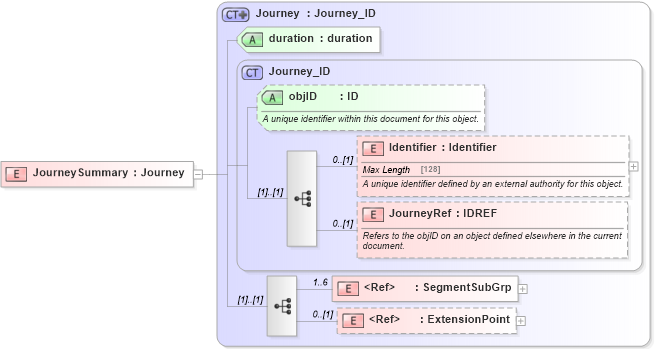

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into SegmentSubGrp in schema product_4_0_0_xsd Drilldown into JourneyRef in schema product_4_0_0_xsd Drilldown into Identifier in schema product_4_0_0_xsd Drilldown into objID in schema product_4_0_0_xsd Drilldown into Journey_ID in schema product_4_0_0_xsd Drilldown into duration in schema product_4_0_0_xsd Drilldown into Journey in schema product_4_0_0_xsdXSD Diagram of JourneySummary in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="JourneySummary" type="prod-0400:Journey" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier prod-0400:Identifier 0 (1)
JourneyRef prod-0400:JourneyRef 0 (1)
SegmentSubGrp prod-0400:SegmentSubGrp 1 6
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID prod-0400:objID Optional
duration prod-0400:duration Required
Collapse Derivation Tree:
