Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: LoyaltyCertificate
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: ota2:Empty
Containing Schema: Finance_3_0_0.xsd
Abstract
Documentation:
Identifies the Loyalty Program, membership, form factor used by the certificate and its current status.

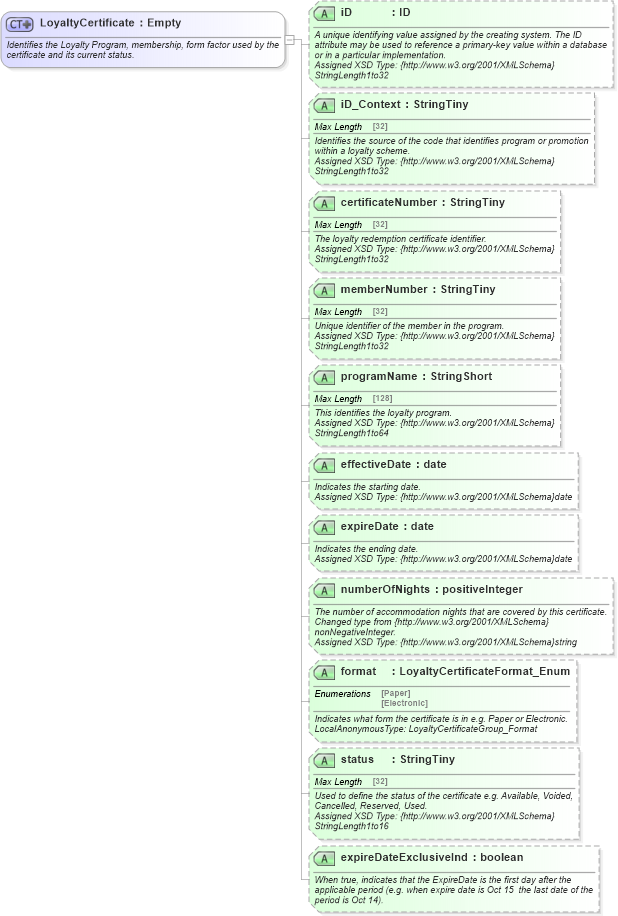

Collapse XSD Schema Diagram:
Drilldown into expireDateExclusiveInd in schema finance_3_0_0_xsd Drilldown into status in schema finance_3_0_0_xsd Drilldown into format in schema finance_3_0_0_xsd Drilldown into numberOfNights in schema finance_3_0_0_xsd Drilldown into expireDate in schema finance_3_0_0_xsd Drilldown into effectiveDate in schema finance_3_0_0_xsd Drilldown into programName in schema finance_3_0_0_xsd Drilldown into memberNumber in schema finance_3_0_0_xsd Drilldown into certificateNumber in schema finance_3_0_0_xsd Drilldown into iD_Context in schema finance_3_0_0_xsd Drilldown into iD in schema finance_3_0_0_xsdXSD Diagram of LoyaltyCertificate in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="LoyaltyCertificate">
    <xsd:annotation>
        <xsd:documentation source="Description">Identifies the Loyalty Program, membership, form factor used by the certificate and its current status.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ValueWithAttributes" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">LoyaltyCertificate</otm:OTA2Entity>
            <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">LoyaltyCertificateGroup</otm:Equivalent>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="ota2:Empty">
            <xsd:attribute name="iD" type="xsd:ID" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">A unique identifying value assigned by the creating system. The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">ID</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">2398379983749</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="iD_Context" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the source of the code that identifies program or promotion within a loyalty scheme.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">ID_Context</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Marriott Rewards</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="certificateNumber" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The loyalty redemption certificate identifier.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">CertificateNumber</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">90374638372</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="memberNumber" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Unique identifier of the member in the program.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to32</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">MemberNumber</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">283746397988</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="programName" type="ota2-0400:StringShort" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">This identifies the loyalty program.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to64</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">ProgramName</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Marriott Rewards</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="effectiveDate" type="xsd:date" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Indicates the starting date.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}date</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">EffectiveDate</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">0901</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="expireDate" type="xsd:date" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Indicates the ending date.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}date</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">ExpireDate</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">1022</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="numberOfNights" type="xsd:positiveInteger" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The number of accommodation nights that are covered by this certificate.</xsd:documentation>
                    <xsd:documentation source="Implementer">Changed type from {http://www.w3.org/2001/XMLSchema}nonNegativeInteger.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}string</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">NmbrOfNights</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">3</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="format" type="fin-0300:LoyaltyCertificateFormat_Enum" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Indicates what form the certificate is in e.g. Paper or Electronic.</xsd:documentation>
                    <xsd:documentation source="Implementer">LocalAnonymousType: LoyaltyCertificateGroup_Format</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Format</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00" />
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="status" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Used to define the status of the certificate e.g. Available, Voided, Cancelled, Reserved, Used.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to16</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Status</otm:Equivalent>
                        <otm:Example context="fin" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Available</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="expireDateExclusiveInd" type="xsd:boolean" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">When true, indicates that the ExpireDate is the first day after the applicable period (e.g. when expire date is Oct 15  the last date of the period is Oct 14).</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
iD fin-0300:iD Optional
iD_Context fin-0300:iD_Context Optional
certificateNumber fin-0300:certificateNumber Optional
memberNumber fin-0300:memberNumber Optional
programName fin-0300:programName Optional
effectiveDate fin-0300:effectiveDate Optional
expireDate fin-0300:expireDate Optional
numberOfNights fin-0300:numberOfNights Optional
format fin-0300:format Optional
status fin-0300:status Optional
expireDateExclusiveInd fin-0300:expireDateExclusiveInd Optional
Collapse Derivation Tree:
Collapse References:
fin-0300:LoyaltyCertificate
