Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Meal
Namespace: http://www.opentravel.org/OTM/product/v4
Containing Schema: Product_4_0_0.xsd
Abstract

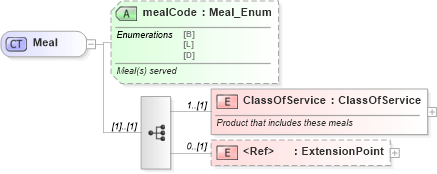

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into ClassOfService in schema product_4_0_0_xsd Drilldown into mealCode in schema product_4_0_0_xsdXSD Diagram of Meal in schema product_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Meal">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Meal</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="1" name="ClassOfService" type="prod-0400:ClassOfService">
            <xsd:annotation>
                <xsd:documentation source="Description">Product that includes these meals</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
    </xsd:sequence>
    <xsd:attribute name="mealCode" type="prod-0400:Meal_Enum" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Meal(s) served</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClassOfService prod-0400:ClassOfService 1 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
mealCode prod-0400:mealCode Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:Meal
