Definition Type: Element
Name: Number
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:AddressStreetNumber
Containing Schema: Common_4_0_0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
May contain the street number and optionally the street name. Assigned XSD Type: {http://chameleon.anonymous/ns}StreetNmbr

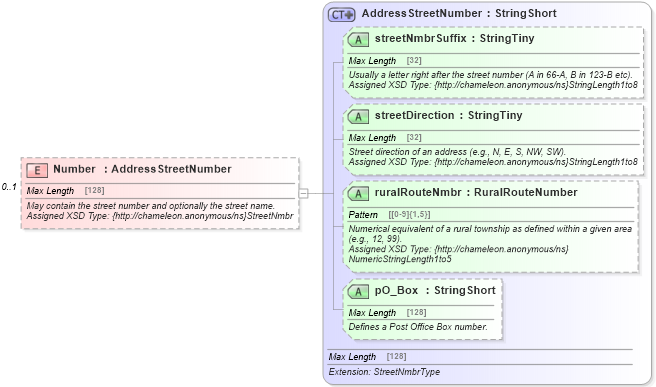

Collapse XSD Schema Diagram:
Drilldown into pO_Box in schema common_4_0_0_xsd Drilldown into ruralRouteNmbr in schema common_4_0_0_xsd Drilldown into streetDirection in schema common_4_0_0_xsd Drilldown into streetNmbrSuffix in schema common_4_0_0_xsd Drilldown into AddressStreetNumber in schema common_4_0_0_xsdXSD Diagram of Number in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element maxOccurs="1" minOccurs="0" name="Number" type="ota2-0400:AddressStreetNumber">
    <xsd:annotation>
        <xsd:documentation source="Description">May contain the street number and optionally the street name.</xsd:documentation>
        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StreetNmbr</xsd:documentation>
        <xsd:appinfo>
            <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">StreetNmbr</otm:Equivalent>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
streetNmbrSuffix ota2-0400:streetNmbrSuffix Optional
streetDirection ota2-0400:streetDirection Optional
ruralRouteNmbr ota2-0400:ruralRouteNmbr Optional
pO_Box ota2-0400:pO_Box Optional
Collapse Derivation Tree:
