Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Operator_Company
Namespace: http://www.opentravel.org/OTM/product/Ground/v2
Type: pgt-0200:Operator
Containing Schema: Ground_2_0_0.xsd
Abstract
Documentation:
The company or driver operating a ground service.

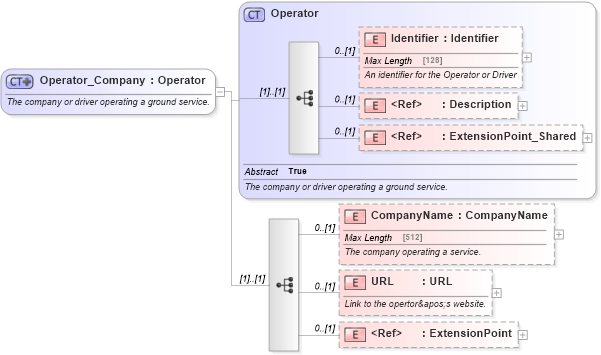

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into URL in schema ground_2_0_0_xsd Drilldown into CompanyName in schema ground_2_0_0_xsd Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into Identifier in schema ground_2_0_0_xsd Drilldown into Operator in schema ground_2_0_0_xsdXSD Diagram of Operator_Company in schema ground_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Operator_Company">
    <xsd:annotation>
        <xsd:documentation source="Description">The company or driver operating a ground service.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ChoiceObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Operator</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="pgt-0200:Operator">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="CompanyName" type="ota2-0400:CompanyName">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The company operating a service.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="URL" type="ota2-0400:URL">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Link to the opertor&amp;apos;s website.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier pgt-0200:Identifier 0 (1)
Description ota2-0400:Description 0 (1)
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
CompanyName pgt-0200:CompanyName 0 (1)
URL pgt-0200:URL 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Derivation Tree:
Collapse References:
pgt-0200:OperatorCompany
