Documentation for Open Travel (OTA)
Definition Type: Element
Name: PayableAmount
Namespace: http://www.opentravel.org/OTM/order/v3
Type: ota2-0400:CurrencyAmount
Containing Schema: Order_3_0_0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The amount of commission to be paid. Assigned XSD Type: {http://chameleon.anonymous/ns}CommissionPayableAmount

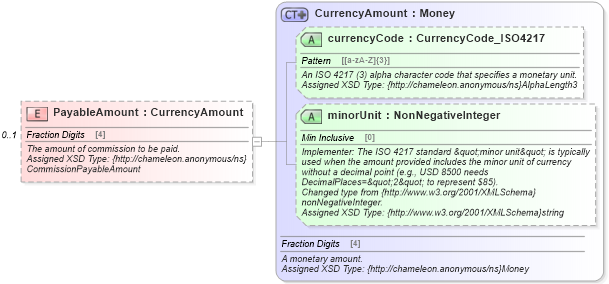

Collapse XSD Schema Diagram:
Drilldown into minorUnit in schema common_4_0_0_xsd Drilldown into currencyCode in schema common_4_0_0_xsd Drilldown into CurrencyAmount in schema common_4_0_0_xsdXSD Diagram of PayableAmount in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element maxOccurs="1" minOccurs="0" name="PayableAmount" type="ota2-0400:CurrencyAmount">
    <xsd:annotation>
        <xsd:documentation source="Description">The amount of commission to be paid.</xsd:documentation>
        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}CommissionPayableAmount</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
currencyCode ota2-0400:currencyCode Optional
minorUnit ota2-0400:minorUnit Optional
Collapse Derivation Tree:
