Documentation for Open Travel (OTA)
Definition Type: Element
Name: PaymentSubGrp
Namespace: http://www.opentravel.org/OTM/order/v3
Type: order-0300:Payment_ID
Containing Schema: Order_3_0_0.xsd
Abstract True
Documentation:
Payment information which may be related to one or more offers.

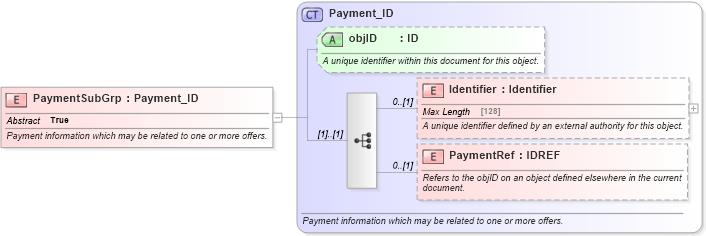

Collapse XSD Schema Diagram:
Drilldown into PaymentRef in schema order_3_0_0_xsd Drilldown into Identifier in schema order_3_0_0_xsd Drilldown into objID in schema order_3_0_0_xsd Drilldown into Payment_ID in schema order_3_0_0_xsdXSD Diagram of PaymentSubGrp in schema order_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element abstract="true" name="PaymentSubGrp" type="order-0300:Payment_ID">
    <xsd:annotation>
        <xsd:documentation source="Description">Payment information which may be related to one or more offers.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Payment</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier order-0300:Identifier 0 (1)
PaymentRef order-0300:PaymentRef 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID order-0300:objID Optional
Collapse Derivation Tree:
