Documentation for Open Travel (OTA)
Definition Type: Element
Name: Position
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:Geolocation
Containing Schema: Common_4_0_0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Specifies the latitude and longitude of a source. Assigned XSD Type: {http://chameleon.anonymous/ns}Position

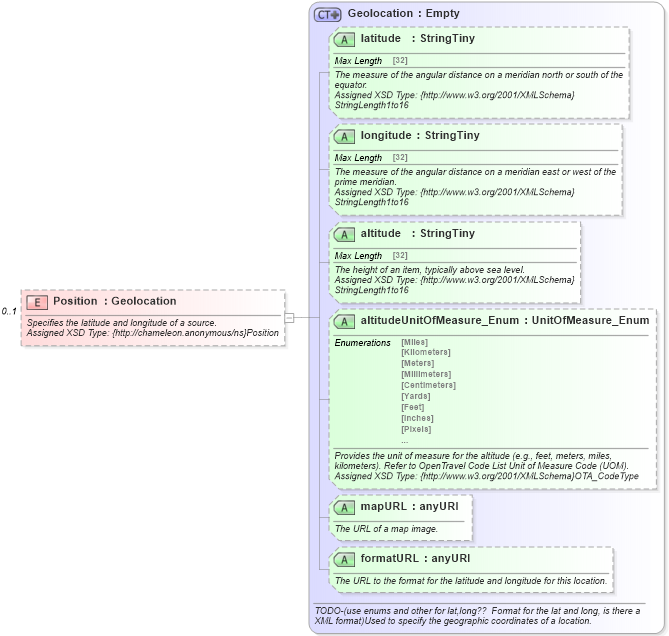

Collapse XSD Schema Diagram:
Drilldown into formatURL in schema common_4_0_0_xsd Drilldown into mapURL in schema common_4_0_0_xsd Drilldown into altitudeUnitOfMeasure_Enum in schema common_4_0_0_xsd Drilldown into altitude in schema common_4_0_0_xsd Drilldown into longitude in schema common_4_0_0_xsd Drilldown into latitude in schema common_4_0_0_xsd Drilldown into Geolocation in schema common_4_0_0_xsdXSD Diagram of Position in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element maxOccurs="1" minOccurs="0" name="Position" type="ota2-0400:Geolocation">
    <xsd:annotation>
        <xsd:documentation source="Description">Specifies the latitude and longitude of a source.</xsd:documentation>
        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}Position</xsd:documentation>
        <xsd:appinfo>
            <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Position</otm:Equivalent>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
latitude ota2-0400:latitude Optional
longitude ota2-0400:longitude Optional
altitude ota2-0400:altitude Optional
altitudeUnitOfMeasure_Enum ota2-0400:altitudeUnitOfMeasure_Enum Optional
mapURL ota2-0400:mapURL Optional
formatURL ota2-0400:formatURL Optional
Collapse Derivation Tree:
