Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Product_Hospitality
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: prod-0400:Product
Containing Schema: Hospitality_1_0_0.xsd
Abstract

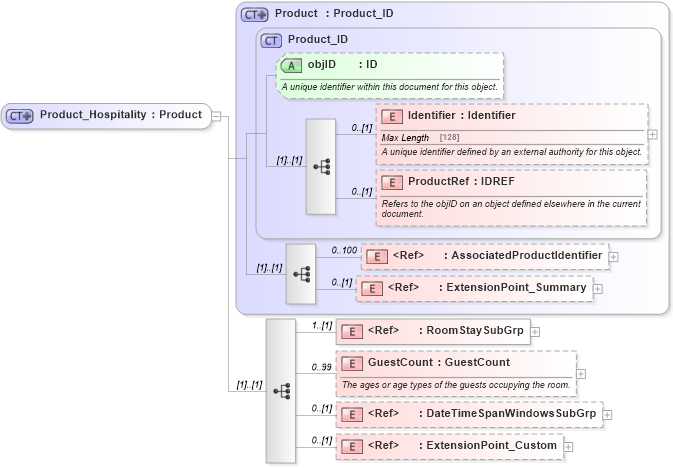

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Custom in schema otm_builtins_xsd Drilldown into DateTimeSpanWindowsSubGrp in schema common_4_0_0_xsd Drilldown into GuestCount in schema hospitality_1_0_0_xsd Drilldown into RoomStaySubGrp in schema hospitality_1_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into AssociatedProductIdentifier in schema product_4_0_0_xsd Drilldown into ProductRef in schema product_4_0_0_xsd Drilldown into Identifier in schema product_4_0_0_xsd Drilldown into objID in schema product_4_0_0_xsd Drilldown into Product_ID in schema product_4_0_0_xsd Drilldown into Product in schema product_4_0_0_xsdXSD Diagram of Product_Hospitality in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Product_Hospitality">
    <xsd:annotation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Product</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="prod-0400:Product">
            <xsd:sequence>
                <xsd:element minOccurs="1" ref="ph:RoomStaySubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">A hospitality guest room product.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="99" minOccurs="0" name="GuestCount" type="prod-0400:GuestCount">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The ages or age types of the guests occupying the room.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2-0400:DateTimeSpanWindowsSubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The Time Span encompassing arrival and departure for the Room Stay.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Custom" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier prod-0400:Identifier 0 (1)
ProductRef prod-0400:ProductRef 0 (1)
AssociatedProductIdentifier prod-0400:AssociatedProductIdentifier 0 100
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
RoomStaySubGrp ph:RoomStaySubGrp 1 (1)
GuestCount ph:GuestCount 0 99
DateTimeSpanWindowsSubGrp ota2-0400:DateTimeSpanWindowsSubGrp 0 (1)
ExtensionPoint_Custom ota2:ExtensionPoint_Custom 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID prod-0400:objID Optional
Collapse Derivation Tree:
Collapse References:
ph:AssociatedProductHospitality, ph:ProductHospitality
