Definition Type: Element
Name: ProgramCode
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:Code
Containing Schema: Common_4_0_0.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Identification of the loyalty program by code. Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to16

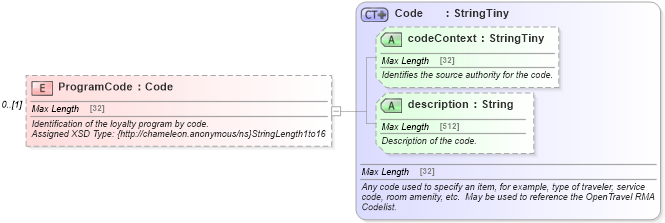

Collapse XSD Schema Diagram:
Drilldown into description in schema common_4_0_0_xsd Drilldown into codeContext in schema common_4_0_0_xsd Drilldown into Code in schema common_4_0_0_xsdXSD Diagram of ProgramCode in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element minOccurs="0" name="ProgramCode" type="ota2-0400:Code">
    <xsd:annotation>
        <xsd:documentation source="Description">Identification of the loyalty program by code.</xsd:documentation>
        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to16</xsd:documentation>
        <xsd:appinfo>
            <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">ProgramCode</otm:Equivalent>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
codeContext ota2-0400:codeContext Optional
description ota2-0400:description Optional
Collapse Derivation Tree:
