<xsd:complexType name="RatePlanCode">
<xsd:annotation>
<xsd:documentation source="Description">A string value may be used to request a particular code or an ID if the guest qualifies for a specific rate, such as AARP, AAA, a corporate rate, etc., or to specify a negotiated code as a result of a negotiated rate.</xsd:documentation>
<xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to64</xsd:documentation>
<xsd:appinfo>
<otm:OTA2Entity type="ValueWithAttributes" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlanCode</otm:OTA2Entity>
<otm:Equivalent context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlanGroup</otm:Equivalent>
<otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">AAAB</otm:Example>
</xsd:appinfo>
</xsd:annotation>
<xsd:simpleContent>
<xsd:extension base="ota2-0400:StringShort">
<xsd:attribute name="ratePlanType" type="ota2-0300:RatePlanType_Enum_Base" use="optional">
<xsd:annotation>
<xsd:documentation source="Description">An enumerated type that allows the query to specify a rate category type, and provides major categories for comparison across brands.</xsd:documentation>
<xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}OTA_CodeType</xsd:documentation>
<xsd:appinfo>
<otm:Equivalent context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlanType</otm:Equivalent>
<otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">11.RPT</otm:Example>
</xsd:appinfo>
</xsd:annotation>
</xsd:attribute>
<xsd:attribute name="ratePlanTypeExtension" type="ota2:String_EnumExtension" />
<xsd:attribute name="ratePlanID" type="ota2-0400:StringShort" use="optional">
<xsd:annotation>
<xsd:documentation source="Description">A text field used to indicate a unique ID that is associated with the rate plan and is essential in the reservation request in order to obtain the rate.</xsd:documentation>
<xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to64</xsd:documentation>
<xsd:appinfo>
<otm:Equivalent context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlanID</otm:Equivalent>
<otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">12345678</otm:Example>
</xsd:appinfo>
</xsd:annotation>
</xsd:attribute>
<xsd:attribute name="ratePlanCategory" type="ota2-0400:StringShort" use="optional">
<xsd:annotation>
<xsd:documentation source="Description">Hotel systems often group multiple rate plans into a single category. This refers to that category that is specific to the hotel CRS/ PMS and should not be confused with a GDS rate category.</xsd:documentation>
<xsd:documentation source="Implementer">Assigned XSD Type: {http://www.w3.org/2001/XMLSchema}StringLength1to64</xsd:documentation>
<xsd:appinfo>
<otm:Equivalent context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlanCategory</otm:Equivalent>
<otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">POD</otm:Example>
</xsd:appinfo>
</xsd:annotation>
</xsd:attribute>
<xsd:attribute name="promotionCode" type="ota2-0400:StringTiny" use="optional">
<xsd:annotation>
<xsd:documentation source="Description">Used to provide a promotion code of the loyalty redemption.</xsd:documentation>
<xsd:appinfo>
<otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">L9Z</otm:Example>
</xsd:appinfo>
</xsd:annotation>
</xsd:attribute>
<xsd:attribute name="promotionVendorCode" type="ota2-0400:ListOfTinyStrings" use="optional">
<xsd:annotation>
<xsd:documentation source="Description">List of the vendor codes associated with a promotion.</xsd:documentation>
<xsd:appinfo>
<otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">WT1</otm:Example>
</xsd:appinfo>
</xsd:annotation>
</xsd:attribute>
<xsd:attribute name="ratePlanQualifierInd" type="xsd:boolean" use="optional">
<xsd:annotation>
<xsd:documentation source="Description">The Rate Plan Qualifier is used to control the sort order of RatePlans. Those Rate Plans that are not qualified will appear first, those that are qualified will appear last.</xsd:documentation>
</xsd:annotation>
</xsd:attribute>
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
|

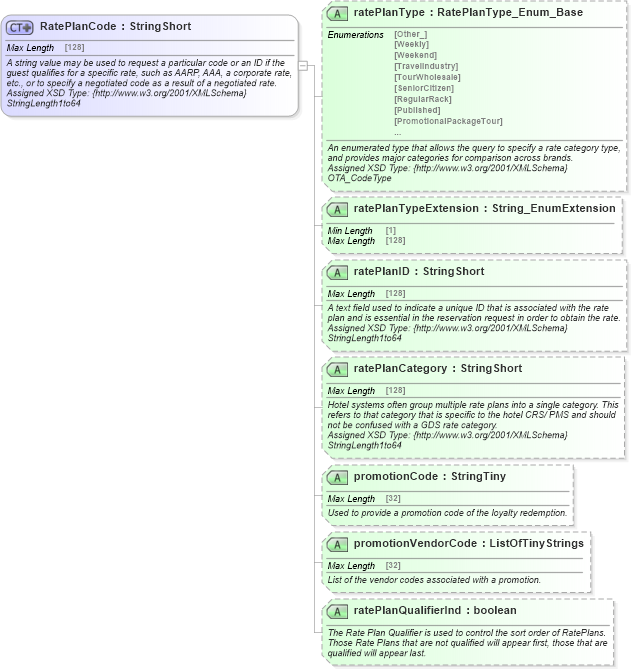

XSD Schema Diagram:
