Documentation for Open Travel (OTA)
Definition Type: Element
Name: RatePlanSubGrp
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: ph:RatePlan
Containing Schema: Hospitality_1_0_0.xsd
Abstract True
Documentation:
Information significant to defining a rate plan.

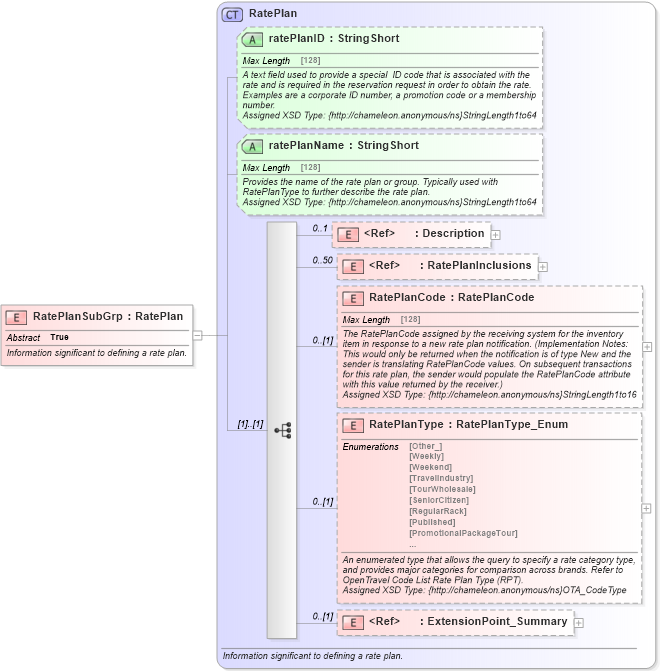

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into RatePlanType in schema hospitality_1_0_0_xsd Drilldown into RatePlanCode in schema hospitality_1_0_0_xsd Drilldown into RatePlanInclusions in schema hospitality_1_0_0_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into ratePlanName in schema hospitality_1_0_0_xsd Drilldown into ratePlanID in schema hospitality_1_0_0_xsd Drilldown into RatePlan in schema hospitality_1_0_0_xsdXSD Diagram of RatePlanSubGrp in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element abstract="true" name="RatePlanSubGrp" type="ph:RatePlan">
    <xsd:annotation>
        <xsd:documentation source="Description">Information significant to defining a rate plan.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RatePlan</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description ota2-0400:Description 0 1
RatePlanInclusions ph:RatePlanInclusions 0 50
RatePlanCode ph:RatePlanCode 0 (1)
RatePlanType ph:RatePlanType 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ratePlanID ph:ratePlanID Optional
ratePlanName ph:ratePlanName Optional
Collapse Derivation Tree:
Documentation for Open Travel (OTA)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
