Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: RequestorID_Detail
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:RequestorID
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
An identifier of the entity making the request (e.g. ATA/IATA/ID number, Electronic Reservation Service Provider (ERSP), Association of British Travel Agents.(ABTA)). Extension: UniqueID_Type

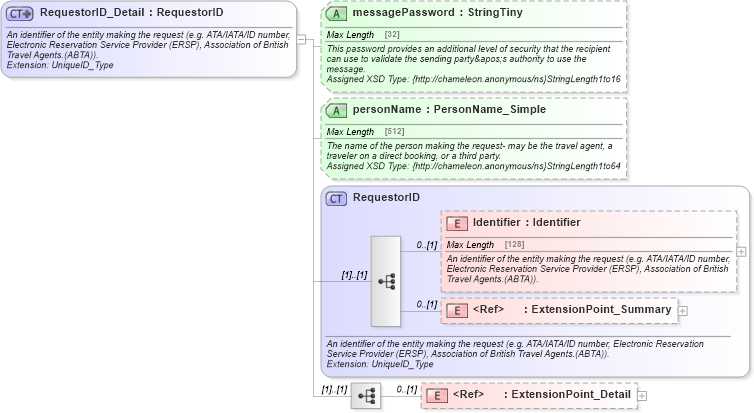

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into Identifier in schema common_4_0_0_xsd Drilldown into RequestorID in schema common_4_0_0_xsd Drilldown into personName in schema common_4_0_0_xsd Drilldown into messagePassword in schema common_4_0_0_xsdXSD Diagram of RequestorID_Detail in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="RequestorID_Detail">
    <xsd:annotation>
        <xsd:documentation source="Description">An identifier of the entity making the request (e.g. ATA/IATA/ID number, Electronic Reservation Service Provider (ERSP), Association of British Travel Agents.(ABTA)).</xsd:documentation>
        <xsd:documentation source="Implementer">Extension: UniqueID_Type</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RequestorID</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ota2-0400:RequestorID">
            <xsd:sequence>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Detail" />
            </xsd:sequence>
            <xsd:attribute name="messagePassword" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">This password provides an additional level of security that the recipient can use to validate the sending party&amp;apos;s authority to use the message.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to16</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">MessagePassword</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="personName" type="ota2-0400:PersonName_Simple" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">The name of the person making the request- may be the travel agent, a traveler on a direct booking, or a third party.</xsd:documentation>
                    <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to64</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Name</otm:Equivalent>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier ota2-0400:Identifier 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
messagePassword ota2-0400:messagePassword Optional
personName ota2-0400:personName Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:RequestorIDDetail
