Documentation for Open Travel (OTA)
Definition Type: Element
Name: RoomTypeSummary
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: ph:RoomType
Containing Schema: Hospitality_1_0_0.xsd
Abstract

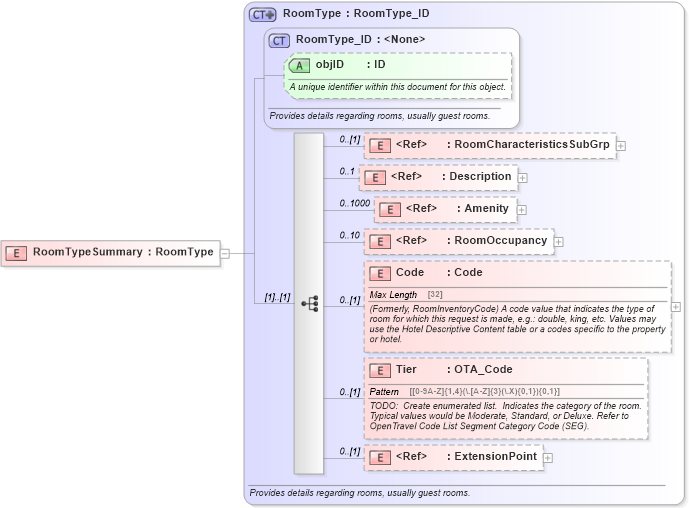

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into Tier in schema hospitality_1_0_0_xsd Drilldown into Code in schema hospitality_1_0_0_xsd Drilldown into RoomOccupancy in schema hospitality_1_0_0_xsd Drilldown into Amenity in schema common_4_0_0_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into RoomCharacteristicsSubGrp in schema hospitality_1_0_0_xsd Drilldown into objID in schema hospitality_1_0_0_xsd Drilldown into RoomType_ID in schema hospitality_1_0_0_xsd Drilldown into RoomType in schema hospitality_1_0_0_xsdXSD Diagram of RoomTypeSummary in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="RoomTypeSummary" type="ph:RoomType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RoomCharacteristicsSubGrp ph:RoomCharacteristicsSubGrp 0 (1)
Description ota2-0400:Description 0 1
Amenity ota2-0400:Amenity 0 1000
RoomOccupancy ph:RoomOccupancy 0 10
Code ph:Code 0 (1)
Tier ph:Tier 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID ph:objID Optional
Collapse Derivation Tree:
