Documentation for Open Travel (OTA)
Definition Type: Element
Name: ThreeDomainSecurity_Results
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: fin-0300:ThreeDomainSecurity_Results
Containing Schema: Finance_3_0_0.xsd
Abstract

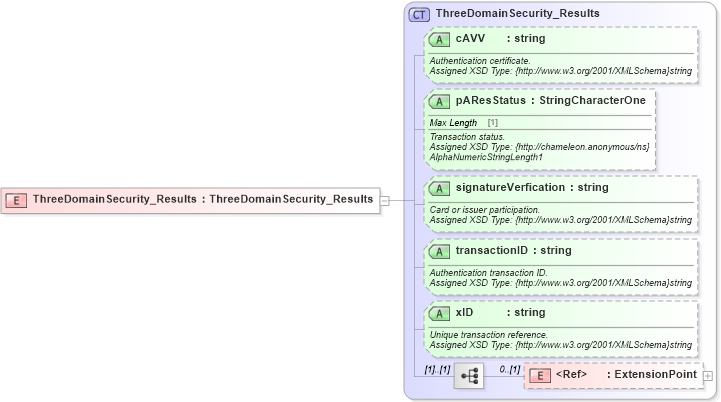

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into xID in schema finance_3_0_0_xsd Drilldown into transactionID in schema finance_3_0_0_xsd Drilldown into signatureVerfication in schema finance_3_0_0_xsd Drilldown into pAResStatus in schema finance_3_0_0_xsd Drilldown into cAVV in schema finance_3_0_0_xsd Drilldown into ThreeDomainSecurity_Results in schema finance_3_0_0_xsdXSD Diagram of ThreeDomainSecurity_Results in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="ThreeDomainSecurity_Results" type="fin-0300:ThreeDomainSecurity_Results" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
cAVV fin-0300:cAVV Optional
pAResStatus fin-0300:pAResStatus Optional
signatureVerfication fin-0300:signatureVerfication Optional
transactionID fin-0300:transactionID Optional
xID fin-0300:xID Optional
Collapse Derivation Tree:
