Documentation for Open Travel (OTA)
Definition Type: Element
Name: Transaction
Namespace: http://opentravel.org/common/message/v02
Type: ota2msg:Transaction
Containing Schema: OTA2_Message_v2.0.0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Transactional processing information.

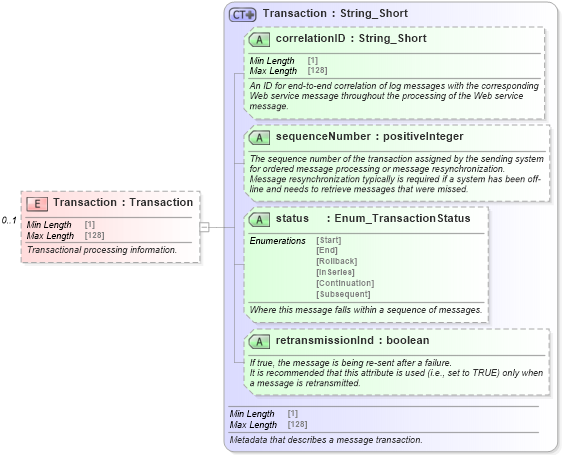

Collapse XSD Schema Diagram:
Drilldown into retransmissionInd in schema ota2_message_v2_0_0_xsd Drilldown into status in schema ota2_message_v2_0_0_xsd Drilldown into sequenceNumber in schema ota2_message_v2_0_0_xsd Drilldown into correlationID in schema ota2_message_v2_0_0_xsd Drilldown into Transaction in schema ota2_message_v2_0_0_xsdXSD Diagram of Transaction in schema ota2_message_v2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="Transaction" type="Transaction" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Transactional processing information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
correlationID ota2msg:correlationID Optional
sequenceNumber ota2msg:sequenceNumber Optional
status ota2msg:status Optional
retransmissionInd ota2msg:retransmissionInd Optional
Collapse Derivation Tree:
