Definition Type: Element
Name: Warning
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: ota2-0400:ErrorWarning
Containing Schema: Finance_3_0_0.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Identifies an error that occurred in the processing of the payment card. Assigned XSD Type: {http://chameleon.anonymous/ns}WarningType

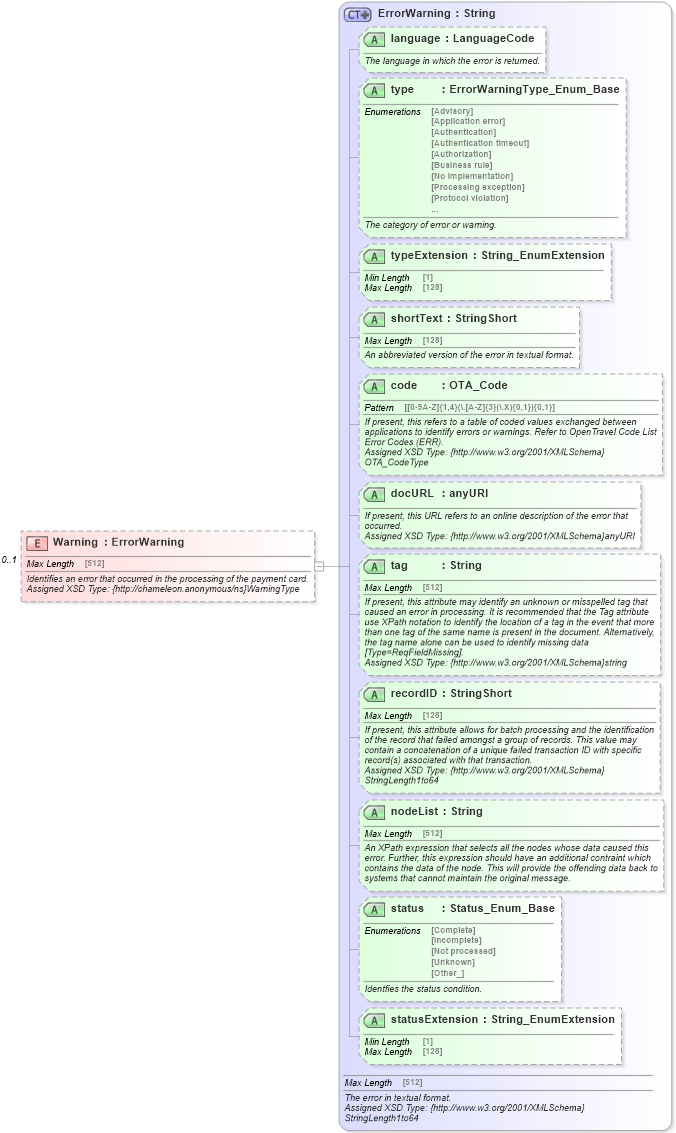

Collapse XSD Schema Diagram:
Drilldown into statusExtension in schema common_4_0_0_xsd Drilldown into status in schema common_4_0_0_xsd Drilldown into nodeList in schema common_4_0_0_xsd Drilldown into recordID in schema common_4_0_0_xsd Drilldown into tag in schema common_4_0_0_xsd Drilldown into docURL in schema common_4_0_0_xsd Drilldown into code in schema common_4_0_0_xsd Drilldown into shortText in schema common_4_0_0_xsd Drilldown into typeExtension in schema common_4_0_0_xsd Drilldown into type in schema common_4_0_0_xsd Drilldown into language in schema common_4_0_0_xsd Drilldown into ErrorWarning in schema common_4_0_0_xsdXSD Diagram of Warning in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element maxOccurs="1" minOccurs="0" name="Warning" type="ota2-0400:ErrorWarning">
    <xsd:annotation>
        <xsd:documentation source="Description">Identifies an error that occurred in the processing of the payment card.</xsd:documentation>
        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}WarningType</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
language ota2-0400:language Optional
type ota2-0400:type Optional
typeExtension ota2-0400:typeExtension (Optional)
shortText ota2-0400:shortText Optional
code ota2-0400:code Optional
docURL ota2-0400:docURL Optional
tag ota2-0400:tag Optional
recordID ota2-0400:recordID Optional
nodeList ota2-0400:nodeList Optional
status ota2-0400:status Optional
statusExtension ota2-0400:statusExtension (Optional)
Collapse Derivation Tree:
