Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: AssociationMembershipType
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Containing Schema: RETSCommons.xsd
Abstract

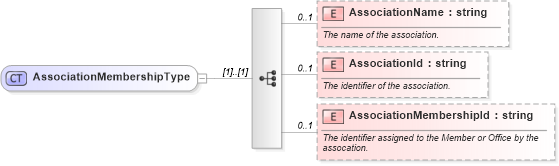

Collapse XSD Schema Diagram:
Drilldown into AssociationMembershipId in schema retscommons_xsd Drilldown into AssociationId in schema retscommons_xsd Drilldown into AssociationName in schema retscommons_xsdXSD Diagram of AssociationMembershipType in schema retscommons_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="AssociationMembershipType">
    <xs:sequence>
        <xs:element name="AssociationName" type="xs:string" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
						The name of the association.
					</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="AssociationId" type="xs:string" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
						The identifier of the association.
					</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="AssociationMembershipId" type="xs:string" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
						The identifier assigned to the Member or Office by the
						assocation.
					</xs:documentation>
            </xs:annotation>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AssociationName commons:AssociationName 0 1
AssociationId commons:AssociationId 0 1
AssociationMembershipId commons:AssociationMembershipId 0 1
Collapse Derivation Tree:
Collapse References:
members:AssociationMembership, offices:AssociationMembership
