Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: FenceType
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Containing Schema: Features.xsd
Abstract
Documentation:
Container for information about fences

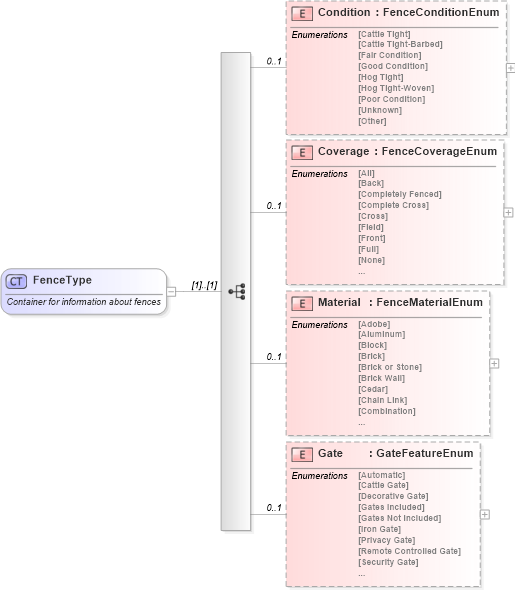

Collapse XSD Schema Diagram:
Drilldown into Gate in schema features_xsd Drilldown into Material in schema features_xsd Drilldown into Coverage in schema features_xsd Drilldown into Condition in schema features_xsdXSD Diagram of FenceType in schema features_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="FenceType">
    <xs:annotation>
        <xs:documentation>
				Container for information about fences
			</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="Condition" type="commons:FenceConditionEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100996</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Coverage" type="commons:FenceCoverageEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100997</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Material" type="commons:FenceMaterialEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100998</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Gate" type="commons:GateFeatureEnum" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100999</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Condition commons:Condition 0 1
Coverage commons:Coverage 0 1
Material commons:Material 0 1
Gate commons:Gate 0 1
Collapse Derivation Tree:
Collapse References:
commons:Fence
