Documentation for Real Estate Transaction Standard (RETS)
Definition Type: Element
Name: Field
Namespace: http://rets.org/xsd/RETSSystem/2007-08
Containing Schema: Vocabulary.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

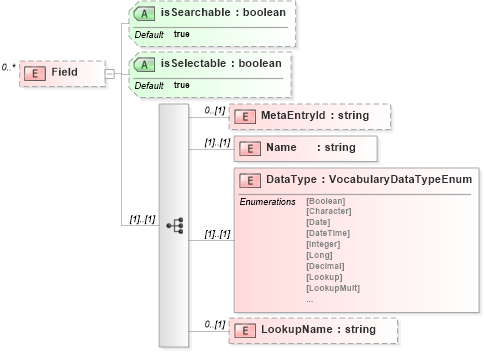

Collapse XSD Schema Diagram:
Drilldown into LookupName in schema vocabulary_xsd Drilldown into DataType in schema vocabulary_xsd Drilldown into Name in schema vocabulary_xsd Drilldown into MetaEntryId in schema vocabulary_xsd Drilldown into isSelectable in schema vocabulary_xsd Drilldown into isSearchable in schema vocabulary_xsdXSD Diagram of Field in schema vocabulary_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:element name="Field" minOccurs="0" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="MetaEntryId" type="xs:string" minOccurs="0" />
            <xs:element name="Name" type="xs:string" />
            <xs:element name="DataType" type="sys:VocabularyDataTypeEnum" />
            <xs:element name="LookupName" type="xs:string" minOccurs="0" />
        </xs:sequence>
        <xs:attribute name="isSearchable" type="xs:boolean" use="optional" default="true" />
        <xs:attribute name="isSelectable" type="xs:boolean" use="optional" default="true" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MetaEntryId sys:MetaEntryId 0 (1)
Name sys:Name (1) (1)
DataType sys:DataType (1) (1)
LookupName sys:LookupName 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
isSearchable sys:isSearchable true Optional
isSelectable sys:isSelectable true Optional
