Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: InteriorDetailType
Namespace: http://rets.org/xsd/RETSCommons/2007-08
Containing Schema: Features.xsd
Abstract
Documentation:
A container for interior details

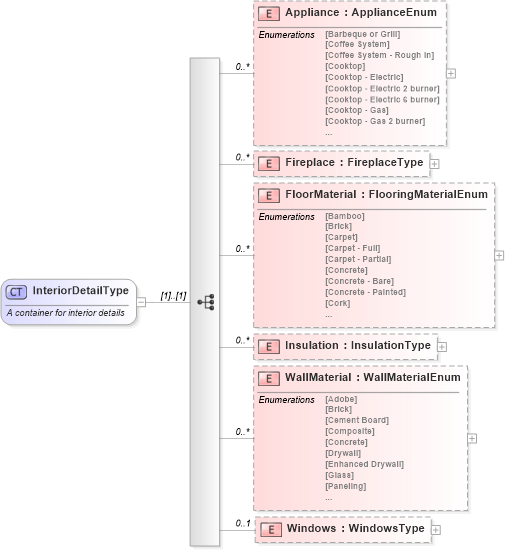

Collapse XSD Schema Diagram:
Drilldown into Windows in schema features_xsd Drilldown into WallMaterial in schema features_xsd Drilldown into Insulation in schema features_xsd Drilldown into FloorMaterial in schema features_xsd Drilldown into Fireplace in schema features_xsd Drilldown into Appliance in schema features_xsdXSD Diagram of InteriorDetailType in schema features_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="InteriorDetailType">
    <xs:annotation>
        <xs:documentation>
				A container for interior details
			</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="Appliance" type="commons:ApplianceEnum" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>101000</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Fireplace" type="commons:FireplaceType" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>101749</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="FloorMaterial" type="commons:FlooringMaterialEnum" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>101001</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Insulation" type="commons:InsulationType" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>101002</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="WallMaterial" type="commons:WallMaterialEnum" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>101003</retsid>
                    <example>
                    </example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Windows" type="commons:WindowsType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>101004</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Appliance commons:Appliance 0 unbounded
Fireplace commons:Fireplace 0 unbounded
FloorMaterial commons:FloorMaterial 0 unbounded
Insulation commons:Insulation 0 unbounded
WallMaterial commons:WallMaterial 0 unbounded
Windows commons:Windows 0 1
Collapse Derivation Tree:
Collapse References:
prop:InteriorDetail, commons:InteriorDetailprop:InteriorDetails,
