Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: LookupList
Namespace: http://rets.org/xsd/RETSSystem/2007-08
Containing Schema: LookupList.xsd
Abstract

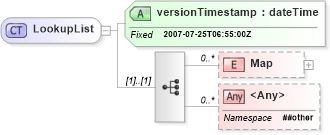

Collapse XSD Schema Diagram:
Drilldown into Map in schema lookuplist_xsd Drilldown into versionTimestamp in schema lookuplist_xsdXSD Diagram of LookupList in schema lookuplist_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xsd:complexType name="LookupList">
    <xsd:sequence>
        <xsd:element name="Map" maxOccurs="unbounded" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="MapEntry" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="Name" type="xsd:string" />
                                <xsd:element name="Value" type="xsd:string" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
                <xsd:attribute name="name" type="xsd:NMTOKEN" use="required" />
                <xsd:attribute name="version" type="xsd:anyURI" use="required" />
                <xsd:attribute name="timestamp" type="xsd:dateTime" use="required" />
            </xsd:complexType>
        </xsd:element>
        <xsd:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="versionTimestamp" type="xsd:dateTime" use="required" fixed="2007-07-25T06:55:00Z" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Map sys:Map 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
versionTimestamp sys:versionTimestamp Required
Collapse Derivation Tree:
Collapse References:
sys:LookupList
