Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: MemberTransmittal
Namespace: http://rets.org/xsd/Associations/2007-08
Containing Schema: AssociationMemberTransmittals.xsd
Abstract

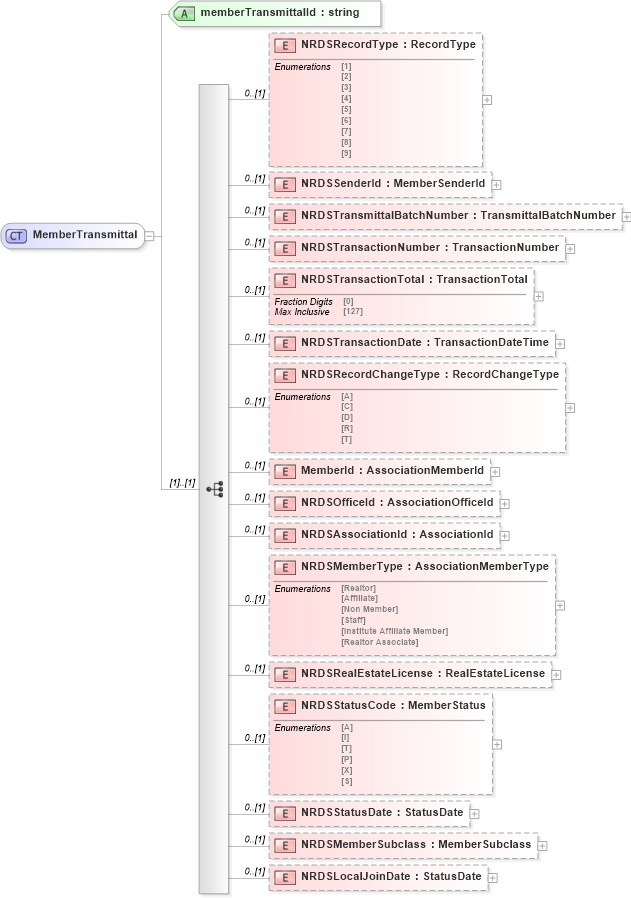

Collapse XSD Schema Diagram:
Drilldown into NRDSLocalJoinDate in schema associationmembertransmittals_xsd Drilldown into NRDSMemberSubclass in schema associationmembertransmittals_xsd Drilldown into NRDSStatusDate in schema associationmembertransmittals_xsd Drilldown into NRDSStatusCode in schema associationmembertransmittals_xsd Drilldown into NRDSRealEstateLicense in schema associationmembertransmittals_xsd Drilldown into NRDSMemberType in schema associationmembertransmittals_xsd Drilldown into NRDSAssociationId in schema associationmembertransmittals_xsd Drilldown into NRDSOfficeId in schema associationmembertransmittals_xsd Drilldown into MemberId in schema associationmembertransmittals_xsd Drilldown into NRDSRecordChangeType in schema associationmembertransmittals_xsd Drilldown into NRDSTransactionDate in schema associationmembertransmittals_xsd Drilldown into NRDSTransactionTotal in schema associationmembertransmittals_xsd Drilldown into NRDSTransactionNumber in schema associationmembertransmittals_xsd Drilldown into NRDSTransmittalBatchNumber in schema associationmembertransmittals_xsd Drilldown into NRDSSenderId in schema associationmembertransmittals_xsd Drilldown into NRDSRecordType in schema associationmembertransmittals_xsd Drilldown into memberTransmittalId in schema associationmembertransmittals_xsdXSD Diagram of MemberTransmittal in schema associationmembertransmittals_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="MemberTransmittal">
    <xs:sequence>
        <xs:element name="NRDSRecordType" type="nrds:RecordType" minOccurs="0" />
        <xs:element name="NRDSSenderId" type="nrds:MemberSenderId" minOccurs="0" />
        <xs:element name="NRDSTransmittalBatchNumber" type="nrds:TransmittalBatchNumber" minOccurs="0" />
        <xs:element name="NRDSTransactionNumber" type="nrds:TransactionNumber" minOccurs="0" />
        <xs:element name="NRDSTransactionTotal" type="nrds:TransactionTotal" minOccurs="0" />
        <xs:element name="NRDSTransactionDate" type="nrds:TransactionDateTime" minOccurs="0" />
        <xs:element name="NRDSRecordChangeType" type="nrds:RecordChangeType" minOccurs="0" />
        <xs:element name="MemberId" type="commons:AssociationMemberId" minOccurs="0" />
        <xs:element name="NRDSOfficeId" type="commons:AssociationOfficeId" minOccurs="0" />
        <xs:element name="NRDSAssociationId" type="nrds:AssociationId" minOccurs="0" />
        <xs:element name="NRDSMemberType" type="nrds:AssociationMemberType" minOccurs="0" />
        <xs:element name="NRDSRealEstateLicense" type="nrds:RealEstateLicense" minOccurs="0" />
        <xs:element name="NRDSStatusCode" type="nrds:MemberStatus" minOccurs="0" />
        <xs:element name="NRDSStatusDate" type="nrds:StatusDate" minOccurs="0" />
        <xs:element name="NRDSMemberSubclass" type="nrds:MemberSubclass" minOccurs="0" />
        <xs:element name="NRDSLocalJoinDate" type="nrds:StatusDate" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="memberTransmittalId" type="xs:string" use="required" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NRDSRecordType assc:NRDSRecordType 0 (1)
NRDSSenderId assc:NRDSSenderId 0 (1)
NRDSTransmittalBatchNumber assc:NRDSTransmittalBatchNumber 0 (1)
NRDSTransactionNumber assc:NRDSTransactionNumber 0 (1)
NRDSTransactionTotal assc:NRDSTransactionTotal 0 (1)
NRDSTransactionDate assc:NRDSTransactionDate 0 (1)
NRDSRecordChangeType assc:NRDSRecordChangeType 0 (1)
MemberId assc:MemberId 0 (1)
NRDSOfficeId assc:NRDSOfficeId 0 (1)
NRDSAssociationId assc:NRDSAssociationId 0 (1)
NRDSMemberType assc:NRDSMemberType 0 (1)
NRDSRealEstateLicense assc:NRDSRealEstateLicense 0 (1)
NRDSStatusCode assc:NRDSStatusCode 0 (1)
NRDSStatusDate assc:NRDSStatusDate 0 (1)
NRDSMemberSubclass assc:NRDSMemberSubclass 0 (1)
NRDSLocalJoinDate assc:NRDSLocalJoinDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
memberTransmittalId assc:memberTransmittalId Required
Collapse Derivation Tree:
Collapse References:
assc:MemberTransmittal
