Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: Message
Namespace: http://rets.org/xsd/Contacts/2007-08
Containing Schema: Contacts.xsd
Abstract

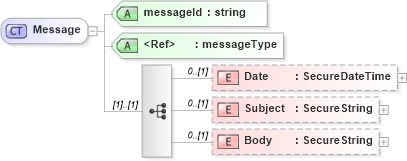

Collapse XSD Schema Diagram:
Drilldown into Body in schema contacts_xsd Drilldown into Subject in schema contacts_xsd Drilldown into Date in schema contacts_xsd Drilldown into messageType in schema contacts_xsd Drilldown into messageId in schema contacts_xsdXSD Diagram of Message in schema contacts_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="Message">
    <xs:sequence>
        <xs:element name="Date" type="commons:SecureDateTime" minOccurs="0" />
        <xs:element name="Subject" type="commons:SecureString" minOccurs="0" />
        <xs:element name="Body" type="commons:SecureString" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="messageId" type="xs:string" use="required" />
    <xs:attribute ref="con:messageType" use="required" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Date con:Date 0 (1)
Subject con:Subject 0 (1)
Body con:Body 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
messageId con:messageId Required
messageType con:messageType Required
Collapse Derivation Tree:
Collapse References:
con:Message, svc:Message
