<xs:complexType name="MLSAreaType">
<xs:annotation>
<xs:documentation>
A Marketing area descriptor for a listing, consisting
of optional major, secondary and minor names.
These names may be area (region/zone), a county,
neighborhood, city, or combination of geographic
areas which may have no legal standing but
defines a small region in terms well-known
by users of the information.
The schema does not enforce data-mapping order
but common usage is that data fields are mapped
in order of major, secondary and minor. Systems
that do not capture information for any of these
elements should suppress the field to element
mapping using the order described above. For
example, if a system only has a single piece of
data for marketing area, they should map this to
the major area. If a system has two pieces of
information, the mapping should be to the major
and secondary area. In both examples, no data
is mapped to the minor area and it would not
be expressed in the response document.
</xs:documentation>
</xs:annotation>
<xs:sequence>
<xs:element name="MajorArea" type="commons:SecureString" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>
The major marketing area name, as defined by
the MLS or other non-governmental organization
</xs:documentation>
<xs:appinfo>
<retsid>100385</retsid>
<example>Harbor Hill</example>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="SecondaryArea" type="commons:SecureString" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>
The secondary marketing area name, as defined
by the MLS or other non-governmental
organization.
</xs:documentation>
<xs:appinfo>
<retsid>100386</retsid>
<example>Hilltop</example>
</xs:appinfo>
</xs:annotation>
</xs:element>
<xs:element name="MinorArea" type="commons:SecureString" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>
A tertiary marketing area name, as
defined by the MLS or other non-governmental
organization.
</xs:documentation>
<xs:appinfo>
<retsid>100387</retsid>
<example>Old Crossroads</example>
</xs:appinfo>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
|

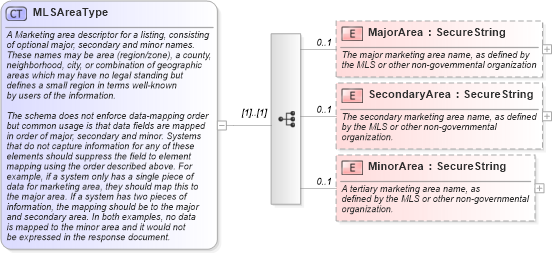

XSD Schema Diagram:
