Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: OfficeType
Namespace: http://rets.org/xsd/Offices/2007-08
Containing Schema: Offices.xsd
Abstract

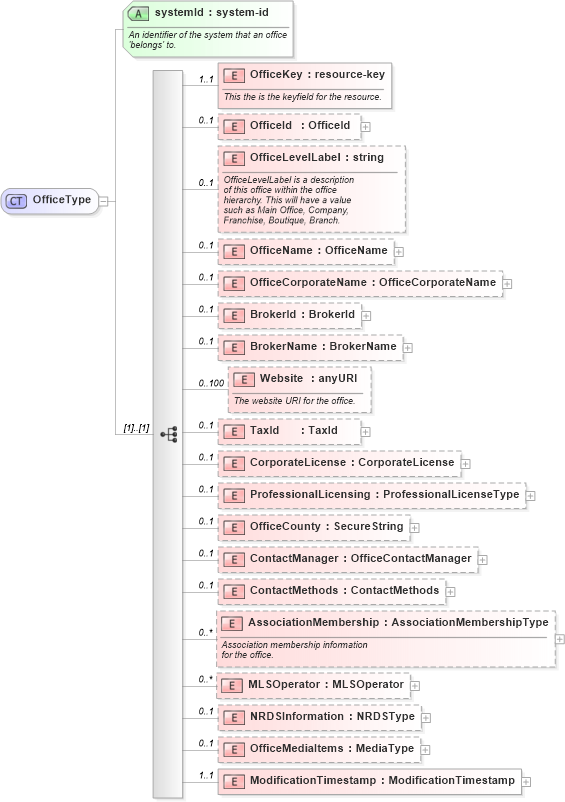

Collapse XSD Schema Diagram:
Drilldown into ModificationTimestamp in schema offices_xsd Drilldown into OfficeMediaItems in schema offices_xsd Drilldown into NRDSInformation in schema offices_xsd Drilldown into MLSOperator in schema offices_xsd Drilldown into AssociationMembership in schema offices_xsd Drilldown into ContactMethods in schema offices_xsd Drilldown into ContactManager in schema offices_xsd Drilldown into OfficeCounty in schema offices_xsd Drilldown into ProfessionalLicensing in schema offices_xsd Drilldown into CorporateLicense in schema offices_xsd Drilldown into TaxId in schema offices_xsd Drilldown into Website in schema offices_xsd Drilldown into BrokerName in schema offices_xsd Drilldown into BrokerId in schema offices_xsd Drilldown into OfficeCorporateName in schema offices_xsd Drilldown into OfficeName in schema offices_xsd Drilldown into OfficeLevelLabel in schema offices_xsd Drilldown into OfficeId in schema offices_xsd Drilldown into OfficeKey in schema offices_xsd Drilldown into systemId in schema offices_xsdXSD Diagram of OfficeType in schema offices_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="OfficeType">
    <xs:sequence>
        <xs:element name="OfficeKey" type="commons:resource-key" minOccurs="1" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
						This the is the keyfield for the resource.
					</xs:documentation>
                <xs:appinfo>
                    <retsid>100291</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="OfficeId" type="commons:OfficeId" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
                </xs:documentation>
                <xs:appinfo>
                    <retsid>100292</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="OfficeLevelLabel" type="xs:string" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:documentation>
						OfficeLevelLabel is a description
						of this office within the office
						hierarchy. This will have a value
						such as Main Office, Company,
						Franchise, Boutique, Branch.
					</xs:documentation>
                <xs:appinfo>
                    <retsid>100293</retsid>
                    <example>Main Office</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="OfficeName" type="commons:OfficeName" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100294</retsid>
                    <example>Grantsville</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="OfficeCorporateName" type="offices:OfficeCorporateName" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100295</retsid>
                    <example>Swan Homefinders</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="BrokerId" type="commons:BrokerId" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100296</retsid>
                    <example>789342</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="BrokerName" type="commons:BrokerName" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100297</retsid>
                    <example>Short &amp; Swan Real Estate, Inc.</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="Website" type="xs:anyURI" minOccurs="0" maxOccurs="100">
            <xs:annotation>
                <xs:documentation>
						The website URI for the office.
					</xs:documentation>
                <xs:appinfo>
                    <retsid>100298</retsid>
                    <example>http://www.realOffice.com/</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="TaxId" type="commons:TaxId" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100299</retsid>
                    <example>RE123456789</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="CorporateLicense" type="offices:CorporateLicense" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100300</retsid>
                    <example>MD123456789</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="ProfessionalLicensing" type="commons:ProfessionalLicenseType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100301</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="OfficeCounty" type="commons:SecureString" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100302</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="ContactManager" type="offices:OfficeContactManager" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100303</retsid>
                    <example>Beverly Smith</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="ContactMethods" type="commons:ContactMethods" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100304</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="AssociationMembership" type="commons:AssociationMembershipType" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>
						Association membership information
						for the office.
					</xs:documentation>
                <xs:appinfo>
                    <retsid>100305</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="MLSOperator" type="commons:MLSOperator" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100306</retsid>
                    <example>Regional MLS</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="NRDSInformation" type="offices:NRDSType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100307</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="OfficeMediaItems" type="media:MediaType" minOccurs="0" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100308</retsid>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
        <xs:element name="ModificationTimestamp" type="commons:ModificationTimestamp" minOccurs="1" maxOccurs="1">
            <xs:annotation>
                <xs:appinfo>
                    <retsid>100309</retsid>
                    <example>2007-03-10T12:00:00-05:00</example>
                </xs:appinfo>
            </xs:annotation>
        </xs:element>
    </xs:sequence>
    <xs:attribute name="systemId" type="commons:system-id" use="required">
        <xs:annotation>
            <xs:documentation>
					An identifier of the system that an office
					'belongs' to.
				</xs:documentation>
            <xs:appinfo>
                <retsid>100310</retsid>
            </xs:appinfo>
        </xs:annotation>
    </xs:attribute>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OfficeKey offices:OfficeKey 1 1
OfficeId offices:OfficeId 0 1
OfficeLevelLabel offices:OfficeLevelLabel 0 1
OfficeName offices:OfficeName 0 1
OfficeCorporateName offices:OfficeCorporateName 0 1
BrokerId offices:BrokerId 0 1
BrokerName offices:BrokerName 0 1
Website offices:Website 0 100
TaxId offices:TaxId 0 1
CorporateLicense offices:CorporateLicense 0 1
ProfessionalLicensing offices:ProfessionalLicensing 0 1
OfficeCounty offices:OfficeCounty 0 1
ContactManager offices:ContactManager 0 1
ContactMethods offices:ContactMethods 0 1
AssociationMembership offices:AssociationMembership 0 unbounded
MLSOperator offices:MLSOperator 0 unbounded
NRDSInformation offices:NRDSInformation 0 1
OfficeMediaItems offices:OfficeMediaItems 0 1
ModificationTimestamp offices:ModificationTimestamp 1 1
Collapse Child Attributes:
Name Type Default Value Use
systemId offices:systemId Required
Collapse Derivation Tree:
Collapse References:
list:EntryOffice, list:ListingOffice, members:Office, offices:Office, prospect:Office, sys:Office, list:OtherOffice, list:SellingOffice, teams:TeamOffice
