Documentation for Real Estate Transaction Standard (RETS)
Definition Type: Element
Name: Resource
Namespace: http://rets.org/xsd/RETSSystem/2007-08
Containing Schema: ResourceList.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

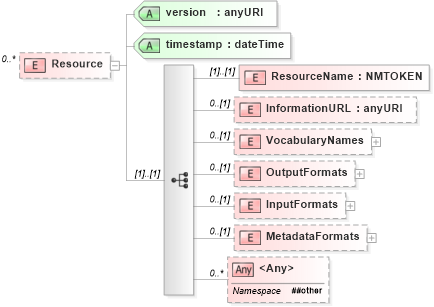

Collapse XSD Schema Diagram:
Drilldown into MetadataFormats in schema resourcelist_xsd Drilldown into InputFormats in schema resourcelist_xsd Drilldown into OutputFormats in schema resourcelist_xsd Drilldown into VocabularyNames in schema resourcelist_xsd Drilldown into InformationURL in schema resourcelist_xsd Drilldown into ResourceName in schema resourcelist_xsd Drilldown into timestamp in schema resourcelist_xsd Drilldown into version in schema resourcelist_xsdXSD Diagram of Resource in schema resourcelist_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:element name="Resource" minOccurs="0" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="ResourceName" type="xs:NMTOKEN" />
            <xs:element name="InformationURL" type="xs:anyURI" minOccurs="0" />
            <xs:element name="VocabularyNames" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="VocabularyName" type="xs:NMTOKEN" maxOccurs="unbounded" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="OutputFormats" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="OutputFormat" maxOccurs="unbounded">
                            <xs:complexType>
                                <xs:sequence>
                                    <xs:choice>
                                        <xs:element name="FormatURL" type="xs:anyURI" />
                                        <xs:element name="ObjectType" type="xs:NMTOKEN" />
                                    </xs:choice>
                                    <xs:element name="Description" type="xs:string" />
                                    <xs:element name="Displays" minOccurs="0">
                                        <xs:complexType>
                                            <xs:sequence>
                                                <xs:element name="Display" type="xs:anyURI" />
                                            </xs:sequence>
                                            <xs:attribute name="name" type="xs:NMTOKEN" use="optional" />
                                        </xs:complexType>
                                    </xs:element>
                                </xs:sequence>
                            </xs:complexType>
                        </xs:element>
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="InputFormats" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="InputFormat" maxOccurs="unbounded">
                            <xs:complexType>
                                <xs:sequence>
                                    <xs:choice>
                                        <xs:element name="FormatURL" type="xs:anyURI" />
                                        <xs:element name="ObjectType" type="xs:NMTOKEN" />
                                    </xs:choice>
                                    <xs:element name="Description" type="xs:string" />
                                </xs:sequence>
                            </xs:complexType>
                        </xs:element>
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="MetadataFormats" minOccurs="0">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="MetadataFormat" maxOccurs="unbounded">
                            <xs:complexType>
                                <xs:sequence>
                                    <xs:element name="FormatURL" type="xs:anyURI" />
                                    <xs:element name="Description" type="xs:string" />
                                </xs:sequence>
                            </xs:complexType>
                        </xs:element>
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:attribute name="version" type="xs:anyURI" use="required" />
        <xs:attribute name="timestamp" type="xs:dateTime" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceName sys:ResourceName (1) (1)
InformationURL sys:InformationURL 0 (1)
VocabularyNames sys:VocabularyNames 0 (1)
OutputFormats sys:OutputFormats 0 (1)
InputFormats sys:InputFormats 0 (1)
MetadataFormats sys:MetadataFormats 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
version sys:version Required
timestamp sys:timestamp Required
