Documentation for Real Estate Transaction Standard (RETS)
Definition Type: Element
Name: RoofType
Namespace: http://rets.org/xsd/Syndication/2008-03
Type: commons:RoofMaterialEnum
Containing Schema: Syndication.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract
Documentation:
Indicates the roofing material present. Possible values are: Aluminum Asbestos Asphalt Built-up Clay Tile Composition Shingle ?Concrete? Concrete Tile Copper Corrugated Metal Green ?gypsum? Masonite or Cement Shake Membrane Metal ?Shingle (Not wood)? Slate Solar Panel Standing Seam Steel Steel Tar and Gravel Thatched Tile Urethane Wood Shake Wood Shingle Unknown Other
Collapse XSD Schema Diagram:

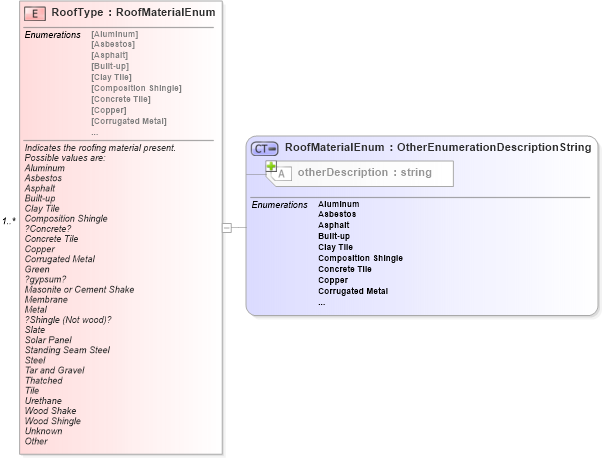

Drilldown into otherDescription in schema primitives_xsd Drilldown into RoofMaterialEnum in schema features_xsdXSD Diagram of RoofType in schema syndication_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:element name="RoofType" type="commons:RoofMaterialEnum" minOccurs="1" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>
									Indicates the roofing material present.
									Possible values are:
									Aluminum
									Asbestos
									Asphalt
									Built-up
									Clay Tile
									Composition Shingle
									?Concrete?
									Concrete Tile
									Copper
									Corrugated Metal
									Green
									?gypsum?
									Masonite or Cement Shake
									Membrane
									Metal
									?Shingle (Not wood)?
									Slate
									Solar Panel
									Standing Seam Steel
									Steel
									Tar and Gravel
									Thatched
									Tile
									Urethane
									Wood Shake
									Wood Shingle
									Unknown
									Other
								</xs:documentation>
        <xs:appinfo>
            <retsid>101876</retsid>
        </xs:appinfo>
    </xs:annotation>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
otherDescription commons:otherDescription Optional
Collapse Derivation Tree:
