Documentation for Real Estate Transaction Standard (RETS)
Definition Type: ComplexType
Name: SavedQuery
Namespace: http://rets.org/xsd/RETSSystem/2007-08
Containing Schema: SavedQueries.xsd
Abstract

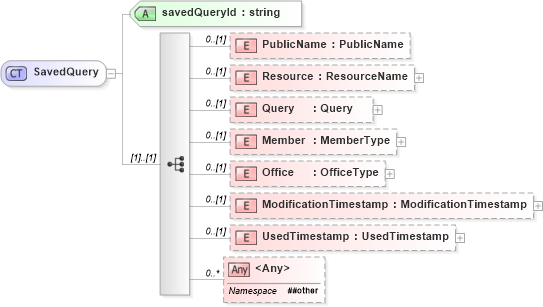

Collapse XSD Schema Diagram:
Drilldown into UsedTimestamp in schema savedqueries_xsd Drilldown into ModificationTimestamp in schema savedqueries_xsd Drilldown into Office in schema savedqueries_xsd Drilldown into Member in schema savedqueries_xsd Drilldown into Query in schema savedqueries_xsd Drilldown into Resource in schema savedqueries_xsd Drilldown into PublicName in schema savedqueries_xsd Drilldown into savedQueryId in schema savedqueries_xsdXSD Diagram of SavedQuery in schema savedqueries_xsd (Real Estate Transaction Standard (RETS))
Collapse XSD Schema Code:
<xs:complexType name="SavedQuery">
    <xs:sequence>
        <xs:element name="PublicName" type="sys:PublicName" minOccurs="0" />
        <xs:element name="Resource" type="commons:ResourceName" minOccurs="0" />
        <xs:element name="Query" type="commons:Query" minOccurs="0" />
        <xs:element name="Member" type="members:MemberType" minOccurs="0" />
        <xs:element name="Office" type="offices:OfficeType" minOccurs="0" />
        <xs:element name="ModificationTimestamp" type="commons:ModificationTimestamp" minOccurs="0" />
        <xs:element name="UsedTimestamp" type="commons:UsedTimestamp" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="savedQueryId" type="xs:string" use="required" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PublicName sys:PublicName 0 (1)
Resource sys:Resource 0 (1)
Query sys:Query 0 (1)
Member sys:Member 0 (1)
Office sys:Office 0 (1)
ModificationTimestamp sys:ModificationTimestamp 0 (1)
UsedTimestamp sys:UsedTimestamp 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
savedQueryId sys:savedQueryId Required
Collapse Derivation Tree:
Collapse References:
sys:SavedQuery
